(b) A potentiometer is connected to a voltage source of E=10 V as shown below, and it has R=2 k and the input range is 0

Post by answerhappygod »

B A Potentiometer Is Connected To A Voltage Source Of E 10 V As Shown Below And It Has R 2 K And The Input Range Is 0 1
B A Potentiometer Is Connected To A Voltage Source Of E 10 V As Shown Below And It Has R 2 K And The Input Range Is 0 1 (15.66 KiB) Viewed 26 times

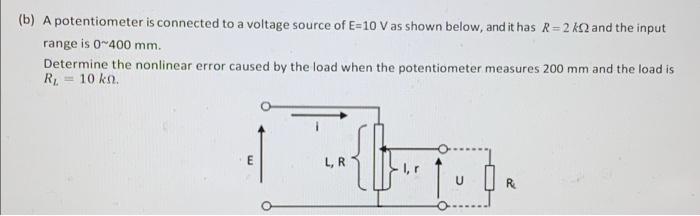

(b) A potentiometer is connected to a voltage source of E=10 V as shown below, and it has R=2 k and the input range is 0-400 mm Determine the nonlinear error caused by the load when the potentiometer measures 200 mm and the load is R = 10 kn E LR {6
