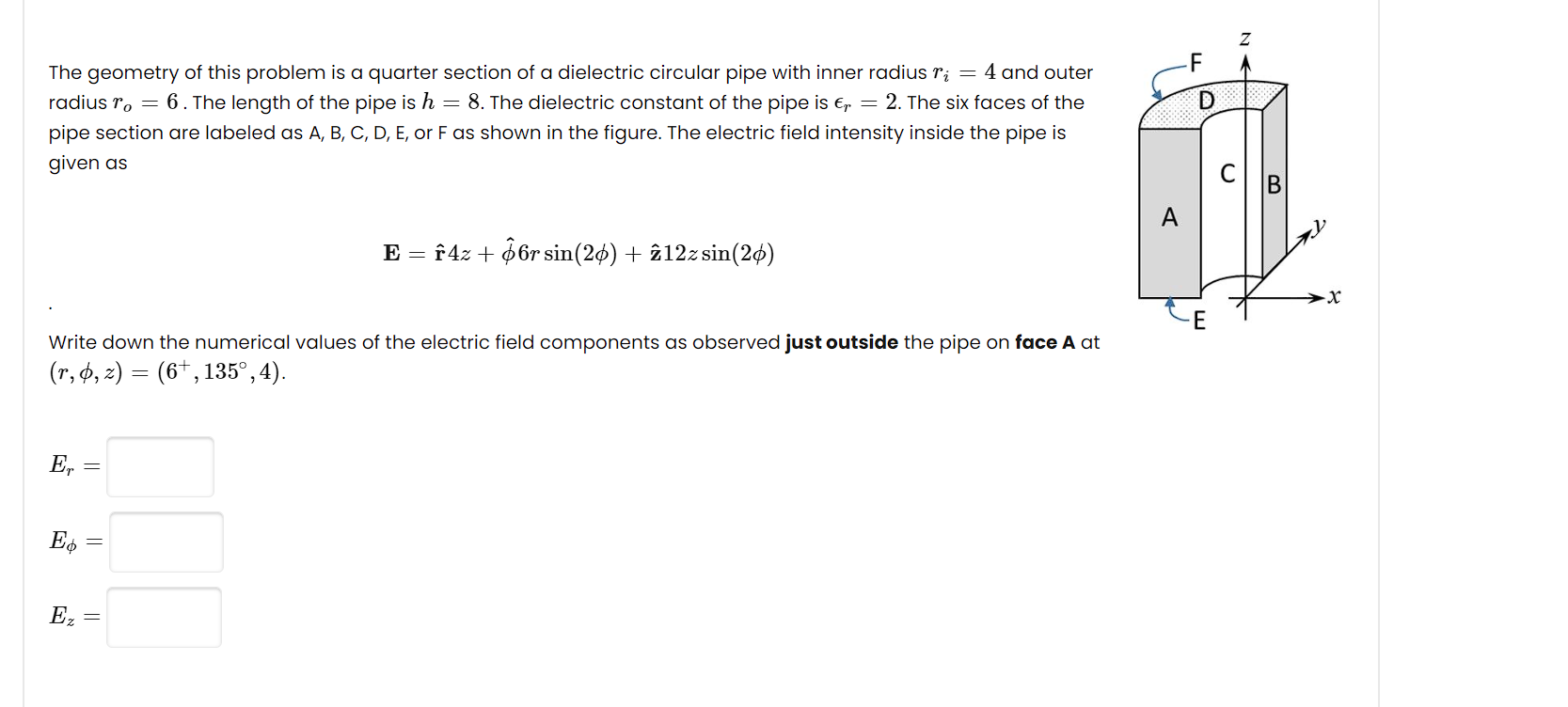

Z D The Geometry Of This Problem Is A Quarter Section Of A Dielectric Circular Pipe With Inner Radius Ri 4 And Outer R 1 (99.25 KiB) Viewed 21 times

Z D The geometry of this problem is a quarter section of a dielectric circular pipe with inner radius ri = 4 and outer radius T, = 6. The length of the pipe is h = 8. The dielectric constant of the pipe is er = 2. The six faces of the pipe section are labeled as A, B, C, D, E, or F as shown in the figure. The electric field intensity inside the pipe is given as A E = f4z + © 6r sin(20) + Ź12z sin(20) X Write down the numerical values of the electric field components as observed just outside the pipe on face A at (1, 0, z) = (67, 135°, 4). Er E! Ez =
