Assuming ( 76 ).. = (abcdefg),, a Boolean function F(A,B,C,D) is given by the following truth table: LLC ( 76 Die = (abc

[answerhappygod]

Assuming 76 Abcdefg A Boolean Function F A B C D Is Given By The Following Truth Table Llc 76 Die Abc 1 (114.67 KiB) Viewed 18 times

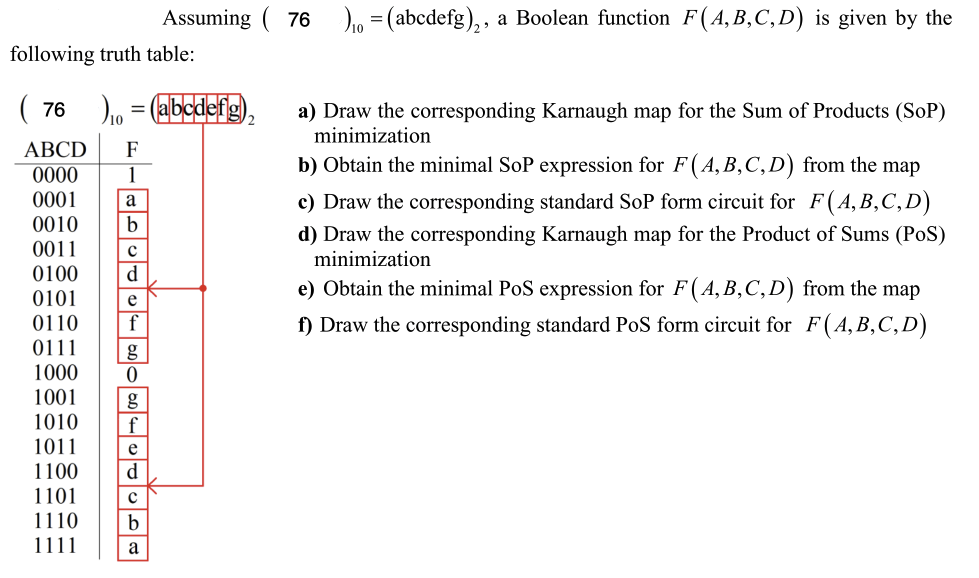

Assuming ( 76 ).. = (abcdefg),, a Boolean function F(A,B,C,D) is given by the following truth table: LLC ( 76 Die = (abcdefg M F 1 a b a) Draw the corresponding Karnaugh map for the Sum of Products (SOP) minimization b) Obtain the minimal SoP expression for F(A,B,C,D) from the map c) Draw the corresponding standard SOP form circuit for F(A,B,C,D) d) Draw the corresponding Karnaugh map for the Product of Sums (PoS) minimization e) Obtain the minimal PoS expression for F(A,B,C,D) from the map f) Draw the corresponding standard PoS form circuit for F(A,B,C,D) с d ABCD 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 e f g 0 g f e d с b a
