A The Resistance Of A Thermistor Varies In Ohms With Temperature T K According To The Following Equation I R T 1 (192.5 KiB) Viewed 24 times
please help to explain and show this type of problem with diagram and design.
thank you

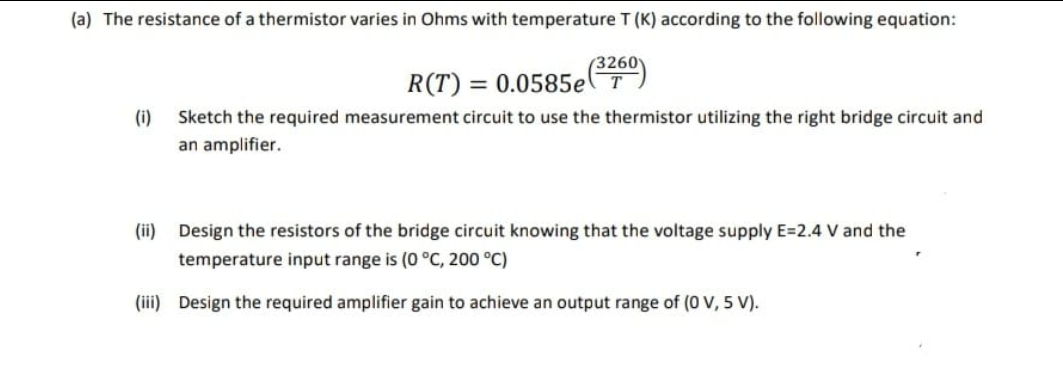

(a) The resistance of a thermistor varies in Ohms with temperature T (K) according to the following equation: (i) R(T) = 0.0585el T (326) Sketch the required measurement circuit to use the thermistor utilizing the right bridge circuit and an amplifier. Design the resistors of the bridge circuit knowing that the voltage supply E=2.4 V and the temperature input range is (0 °C, 200 °C) (iii) Design the required amplifier gain to achieve an output range of (0 V, 5 V).
