Given a common emitter circuit configuration as depicted in Fig. 2.a, and by using re transistor model as given in the F

Post by answerhappygod »

Given A Common Emitter Circuit Configuration As Depicted In Fig 2 A And By Using Re Transistor Model As Given In The F 1
Given A Common Emitter Circuit Configuration As Depicted In Fig 2 A And By Using Re Transistor Model As Given In The F 1 (33.52 KiB) Viewed 25 times

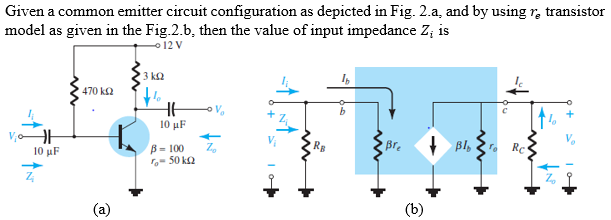

Given a common emitter circuit configuration as depicted in Fig. 2.a, and by using re transistor model as given in the Fig.2.b, then the value of input impedance Zi is 12 V 3 ΚΩ 1 470 ΚΩ HE 10 uF 11 + 7 10 uF RE 'Bre B1 RC B-100 -50k Z a) (b)
