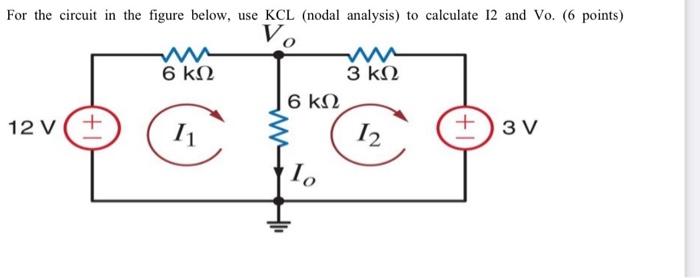

For the circuit in the figure below, use KCL (nodal analysis) to calculate 12 and Vo. (6 points) Vo w 6 ΚΩ 3 ΚΩ 6 ΚΩ 12V + 11 12 (+)3V 1ο

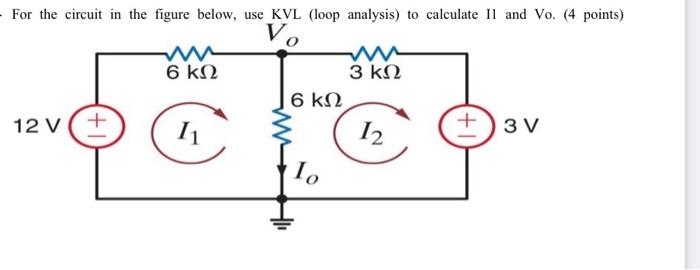

For the circuit in the figure below, use KVL (loop analysis) to calculate Il and Vo. (4 points) V. w 6 ΚΩ 3 ΚΩ 6 ΚΩ 12V
-
