(c) Consider the shaft position control system of a DC motor as shown in Figure Q3c. Pl controller plant R(S). 1 O(S) C(

Post by answerhappygod »

C Consider The Shaft Position Control System Of A Dc Motor As Shown In Figure Q3c Pl Controller Plant R S 1 O S C 1
C Consider The Shaft Position Control System Of A Dc Motor As Shown In Figure Q3c Pl Controller Plant R S 1 O S C 1 (43.32 KiB) Viewed 28 times

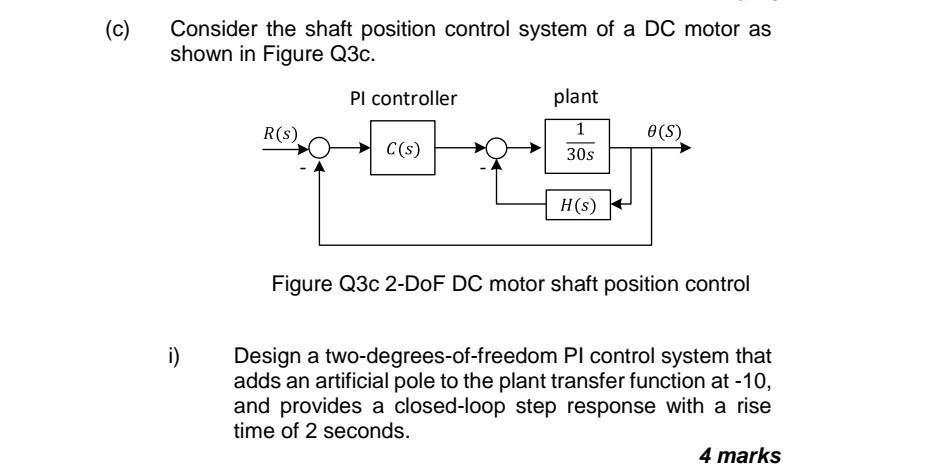

(c) Consider the shaft position control system of a DC motor as shown in Figure Q3c. Pl controller plant R(S). 1 O(S) C(s) 30s H(S) Figure Q3c 2-DoF DC motor shaft position control i) Design a two-degrees-of-freedom Pl control system that adds an artificial pole to the plant transfer function at -10, and provides a closed-loop step response with a rise time of 2 seconds. 4 marks
