Question 5 For the circuit shown below, calculate the minimum value of the capcitor C so that the ripple voltage does no

Post by answerhappygod »

Question 5 For The Circuit Shown Below Calculate The Minimum Value Of The Capcitor C So That The Ripple Voltage Does No 1
Question 5 For The Circuit Shown Below Calculate The Minimum Value Of The Capcitor C So That The Ripple Voltage Does No 1 (21.27 KiB) Viewed 23 times

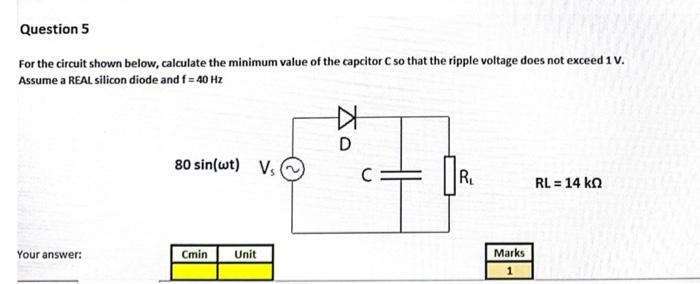

Question 5 For the circuit shown below, calculate the minimum value of the capcitor C so that the ripple voltage does not exceed 1 v. Assume a REAL silicon diode and f= 40 Hz sy D 80 sin(wt) VS RI RL = 14 ko Your answer: Cmin Unit Marks 1
