Question 4 For the circuit shown below, calculate Vout -- the voltage across just the middle resistor. Assume an interna

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 4 For the circuit shown below, calculate Vout -- the voltage across just the middle resistor. Assume an interna

Post by answerhappygod »

Question 4 For The Circuit Shown Below Calculate Vout The Voltage Across Just The Middle Resistor Assume An Interna 1
Question 4 For The Circuit Shown Below Calculate Vout The Voltage Across Just The Middle Resistor Assume An Interna 1 (21.23 KiB) Viewed 30 times

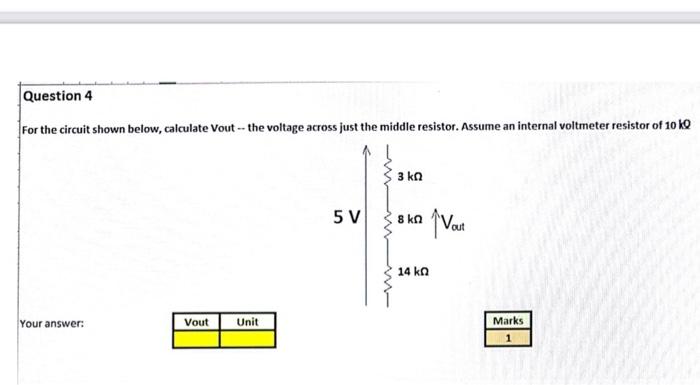

Question 4 For the circuit shown below, calculate Vout -- the voltage across just the middle resistor. Assume an internal voltmeter resistor of 10 KQ 3 kΩ 5 V 8 ΚΩ Voir 14 kn Your answer: Vout Unit Marks 1
