Scenario: You are given a task to solve the circuit problem found on one of the printed circuit boards at the conveyor.

[answerhappygod]

Scenario You Are Given A Task To Solve The Circuit Problem Found On One Of The Printed Circuit Boards At The Conveyor 1 (32.71 KiB) Viewed 27 times

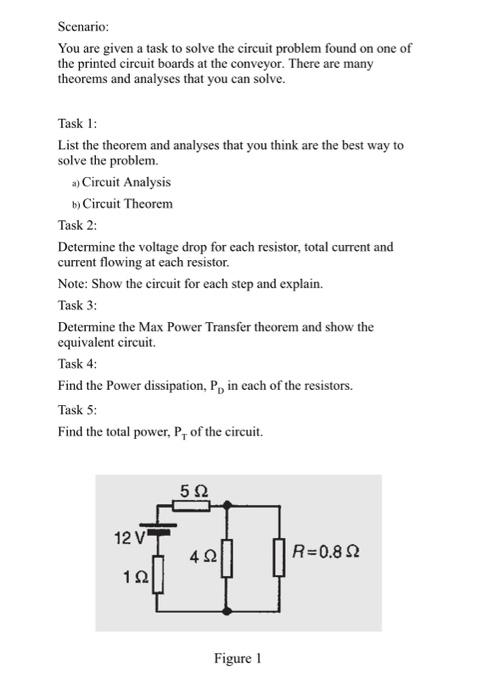

Scenario: You are given a task to solve the circuit problem found on one of the printed circuit boards at the conveyor. There are many theorems and analyses that you can solve. Task 1: List the theorem and analyses that you think are the best way to solve the problem. a) Circuit Analysis Circuit Theorem Task 2: Determine the voltage drop for each resistor, total current and current flowing at each resistor. Note: Show the circuit for each step and explain. Task 3: Determine the Max Power Transfer theorem and show the equivalent circuit. Task 4: Find the Power dissipation, P, in each of the resistors. Task 5: Find the total power, P, of the circuit. 52 12 V 422 R=0.82 Figure 1
