Prob. 3. Pn junction - reverse biased = For a silicon one-sided abrupt junction with Na = 2 x 1019 cm-3 and Np = 8 x 101

[answerhappygod]

Prob 3 Pn Junction Reverse Biased For A Silicon One Sided Abrupt Junction With Na 2 X 1019 Cm 3 And Np 8 X 101 1 (87.7 KiB) Viewed 55 times

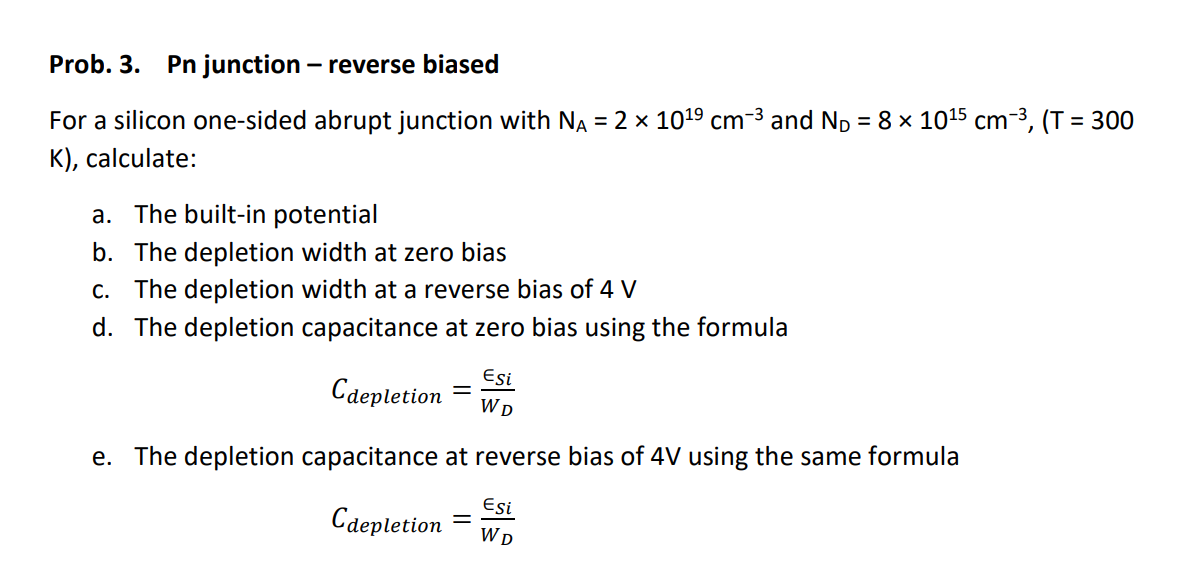

Prob. 3. Pn junction - reverse biased = For a silicon one-sided abrupt junction with Na = 2 x 1019 cm-3 and Np = 8 x 1015 cm-3, (T = 300 K), calculate: a. The built-in potential b. The depletion width at zero bias The depletion width at a reverse bias of 4 V d. The depletion capacitance at zero bias using the formula C. Cdepletion - Esi WD e. The depletion capacitance at reverse bias of 4V using the same formula Cdepletion Esi WD
