5. A timing diagram below shows a D Flip-flop and the input clock. Show the transition of the output at the positive tra

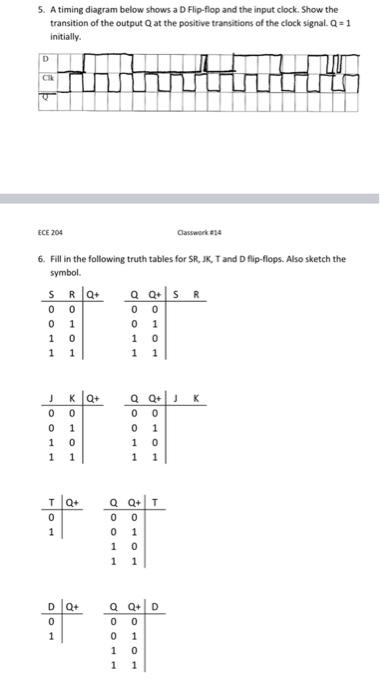

5. A timing diagram below shows a D Flip-flop and the input clock. Show the transition of the output at the positive transitions of the clock signal. Q=1 initially. D ECE 204 Casswork 6. Fill in the following truth tables for SR, XK,T and D flip-flops. Also sketch the symbol. s R + Q Q S R 0 0 0 0 1 0 1 1 0 1 0 1 1 1 0 1 J 0 Q QK 0 KQ+ 0 1 0 1 0 0 0 1 1 0 1 1 1 1 TQ+ 0 1 Q Q+ 1 0 0 0 1 1 o 1 1 DQ+ 0 1 Q Q+ D 0 0 0 1 1 0 1 1
