Problem 2 A 30-m-long lossless transmission line with Zo = 50 operating at 2 MHz is terminated with a load Z 60+ j400. I

Post by answerhappygod »

Problem 2 A 30 M Long Lossless Transmission Line With Zo 50 Operating At 2 Mhz Is Terminated With A Load Z 60 J400 I 1

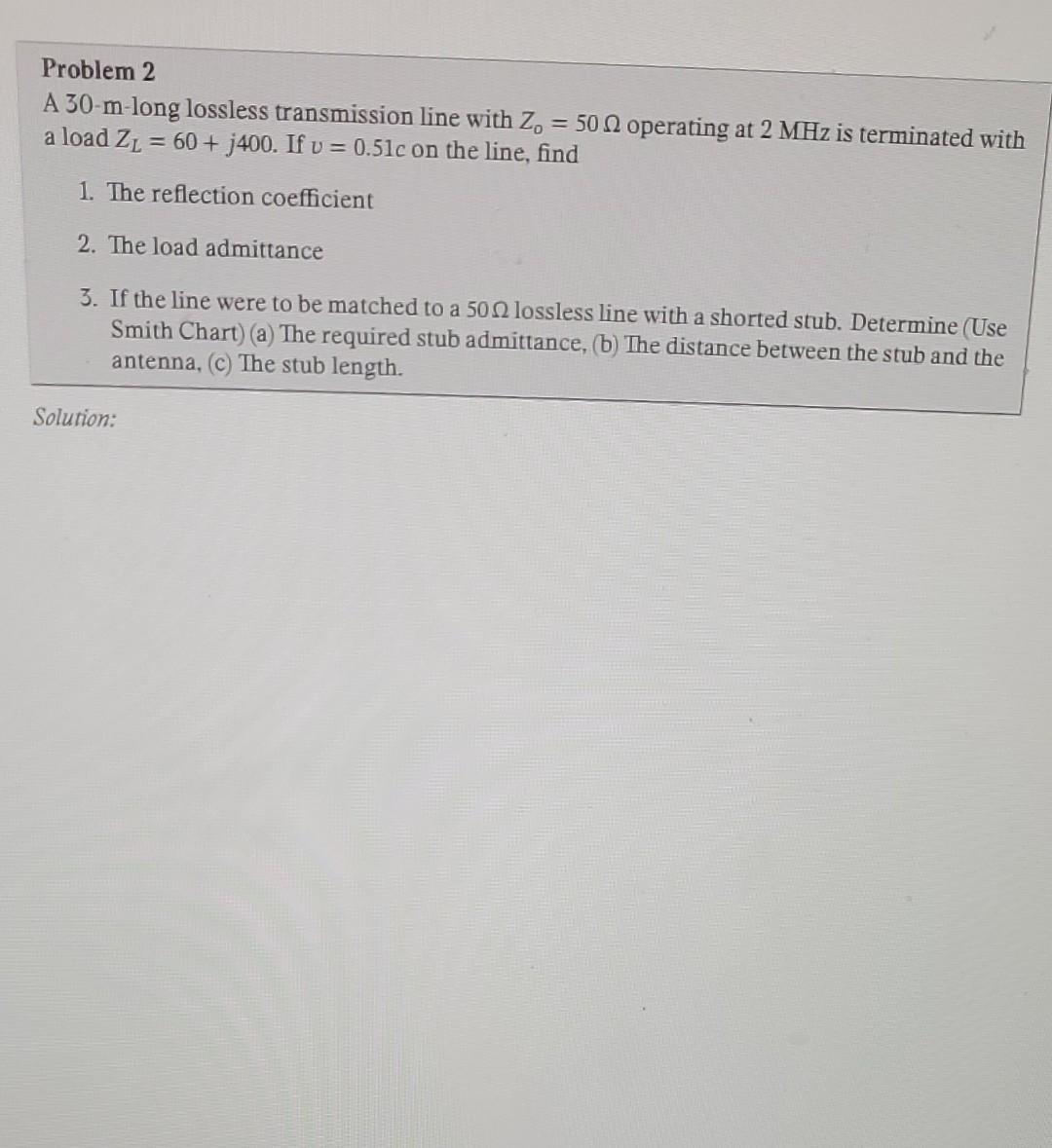

Problem 2 A 30 M Long Lossless Transmission Line With Zo 50 Operating At 2 Mhz Is Terminated With A Load Z 60 J400 I 1 (99.13 KiB) Viewed 35 times
PLEASE USE SMITU CHART!!
THANK YOU.
Problem 2 A 30-m-long lossless transmission line with Zo = 50 operating at 2 MHz is terminated with a load Z 60+ j400. If u = 0.51c on the line, find = 1. The reflection coefficient 2. The load admittance 3. If the line were to be matched to a 500 lossless line with a shorted stub. Determine (Use Smith Chart) a The required stub admittance, (b) The distance between the stub and the antenna, (c) The stub length. Solution:
