built a single-phase half-wave controlled rectification
circuit in simulation software MATLAB for investigation of their
characteristics under R load and RL load condition with different
phase shift of firing circuit.
Built A Single Phase Half Wave Controlled Rectification Circuit In Simulation Software Matlab For Investigation Of Their 1 (144.7 KiB) Viewed 67 times

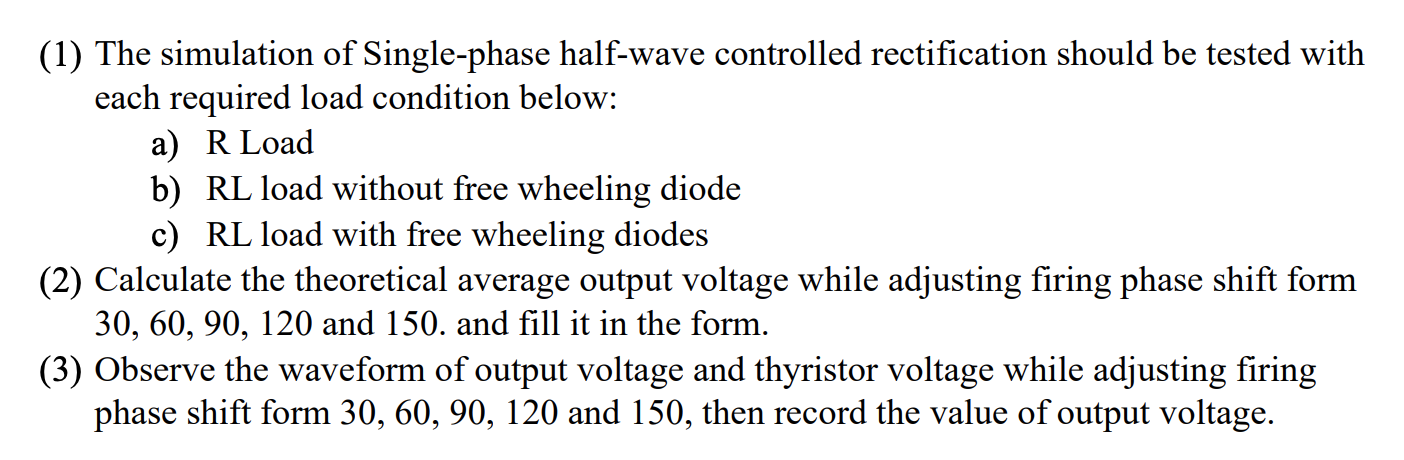

(1) The simulation of Single-phase half-wave controlled rectification should be tested with each required load condition below: a) R Load b) RL load without free wheeling diode c) RL load with free wheeling diodes (2) Calculate the theoretical average output voltage while adjusting firing phase shift form 30, 60, 90, 120 and 150. and fill it in the form. (3) Observe the waveform of output voltage and thyristor voltage while adjusting firing phase shift form 30, 60, 90, 120 and 150, then record the value of output voltage.
