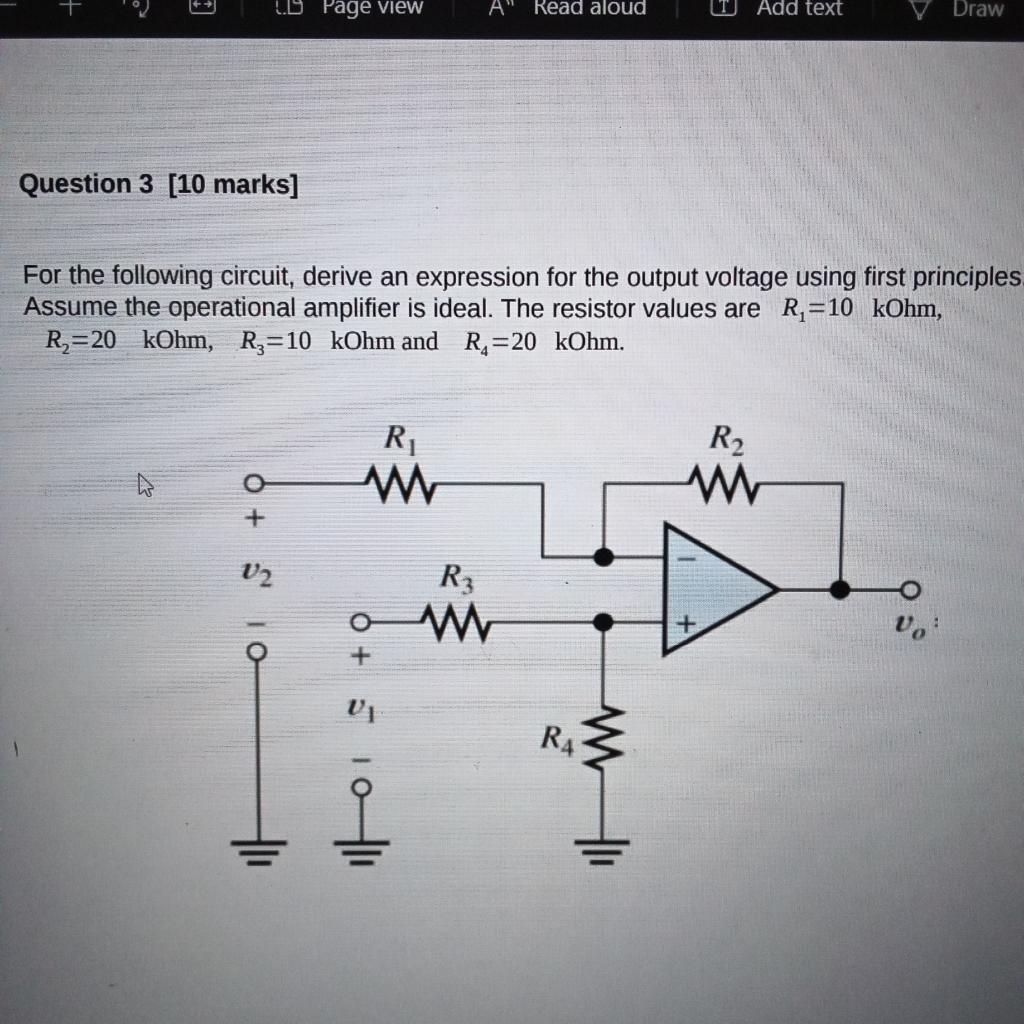

LD Page view A Read aloud Add text Draw Question 3 [10 marks] For the following circuit, derive an expression for the output voltage using first principles Assume the operational amplifier is ideal. The resistor values are Ri=10 kOhm, Ry=20 kOhm, Rz=10 kOhm and RA=20 kOhm. R w R2 w O + Sio V2 R3 O + 10 U R4 1
