a) Find the total resistance Rt of the circuit shown in Figure 8. Determine the current values through all the resistors

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

a) Find the total resistance Rt of the circuit shown in Figure 8. Determine the current values through all the resistors

Post by answerhappygod »

A Find The Total Resistance Rt Of The Circuit Shown In Figure 8 Determine The Current Values Through All The Resistors 1
A Find The Total Resistance Rt Of The Circuit Shown In Figure 8 Determine The Current Values Through All The Resistors 1 (75.86 KiB) Viewed 85 times

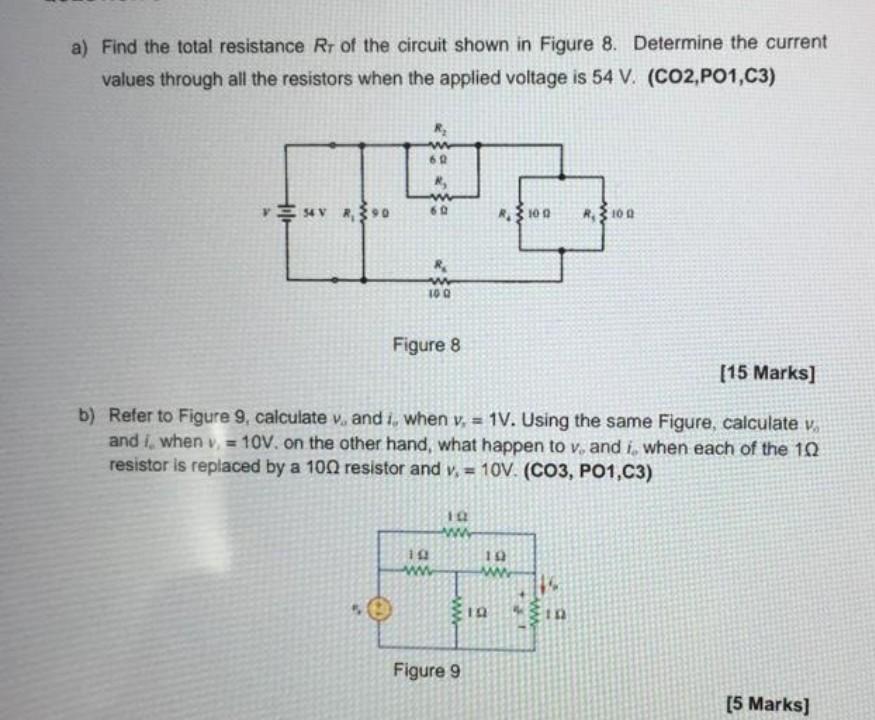

a) Find the total resistance Rt of the circuit shown in Figure 8. Determine the current values through all the resistors when the applied voltage is 54 V. (CO2, PO1,C3) R 60 vv R. w 60 R100 *100 R 100 Figure 8 (15 Marks] b) Refer to Figure 9, calculate v, and i, when v, = 1V. Using the same Figure, calculate v and / when v = 10V. on the other hand, what happen to v. and i, when each of the 10 resistor is replaced by a 100 resistor and v, = 10V. (CO3, PO1,C3) 10 10 10 w 1 19 w Figure 9 [5 Marks]
