Two loads, A and B, are connected in parallel across a 1-kV-rms 60-HzHz line, as shown in (Figure 1). Load A consumes 10

Post by answerhappygod »

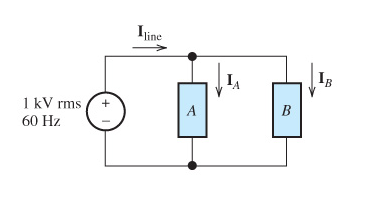

Two loads, A and B, are connected in parallel
across a 1-kV-rms 60-HzHz line, as shown
in (Figure
1). Load A consumes 10 kW with
a 70 percent lagging power factor.
Load B has an apparent power
of 25 kVA with an 80 percent lagging power
factor.
Two Loads A And B Are Connected In Parallel Across A 1 Kv Rms 60 Hzhz Line As Shown In Figure 1 Load A Consumes 10 1
Two Loads A And B Are Connected In Parallel Across A 1 Kv Rms 60 Hzhz Line As Shown In Figure 1 Load A Consumes 10 1 (14.34 KiB) Viewed 50 times
Part A: Find the power delivered by the source = 3*10^4
Part B: Find the reactive power delivered by the source
Part C: Find the apparent power delivered by the source
Part D: What is the power factor seen by the source?
Tline IB + 1 kV rms 60 Hz А B
