(24 Question 2 (35 points) A core with three legs is shown in the figure below. Its depth is 5 cm, and there are 200 tur

[answerhappygod]

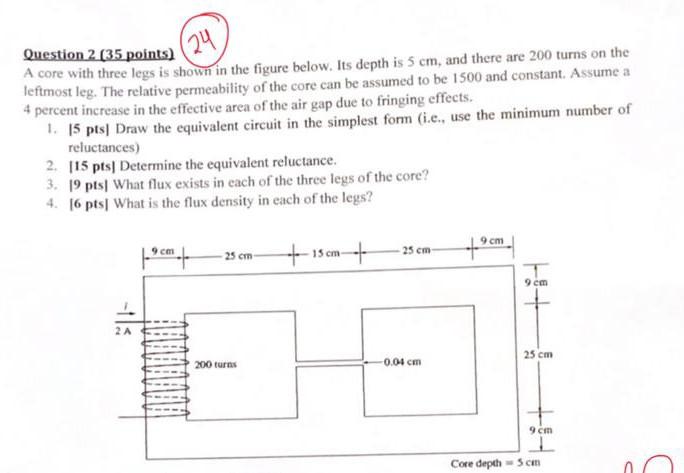

24 Question 2 35 Points A Core With Three Legs Is Shown In The Figure Below Its Depth Is 5 Cm And There Are 200 Tur 1 (30.91 KiB) Viewed 27 times

(24 Question 2 (35 points) A core with three legs is shown in the figure below. Its depth is 5 cm, and there are 200 turns on the leftmost leg. The relative permeability of the core can be assumed to be 1500 and constant. Assume a 4 percent increase in the effective area of the air gap due to fringing effects. 1. 15 pts] Draw the equivalent circuit in the simplest form (i.e., use the minimum number of reluctances) 2. 115 pts/ Determine the equivalent reluctance. 3. 19 pts What flux exists in each of the three legs of the core? 4. 16 pts. What is the flux density in each of the legs? 9 cm cm + 25 cm 15 cm 25 cm + + 9 cm 25 cm 200 turns -0.04 cm + 9 cm Core depth som
