2. A magnetic circuit as given in Figure 2 has a permanent magnet with a length d of 1.2 cm on an iron core with uniform

[answerhappygod]

2 A Magnetic Circuit As Given In Figure 2 Has A Permanent Magnet With A Length D Of 1 2 Cm On An Iron Core With Uniform 1 (33.3 KiB) Viewed 32 times

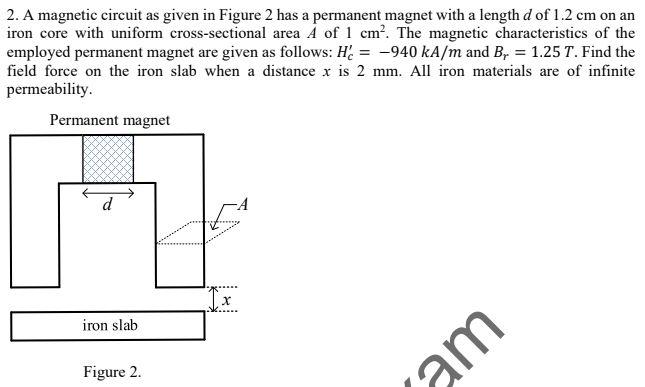

2. A magnetic circuit as given in Figure 2 has a permanent magnet with a length d of 1.2 cm on an iron core with uniform cross-sectional area A of 1 cm². The magnetic characteristics of the employed permanent magnet are given as follows: H = -940 kA/m and B. = 1.25 T. Find the field force on the iron slab when a distance x is 2 mm. All iron materials are of infinite permeability. Permanent magnet X iron slab am Figure 2.
