Part (2) Q.3 For the circuit shown in Figure 3 shown below, use Bread Board to connect R. Circuit shown your selected va

[answerhappygod]

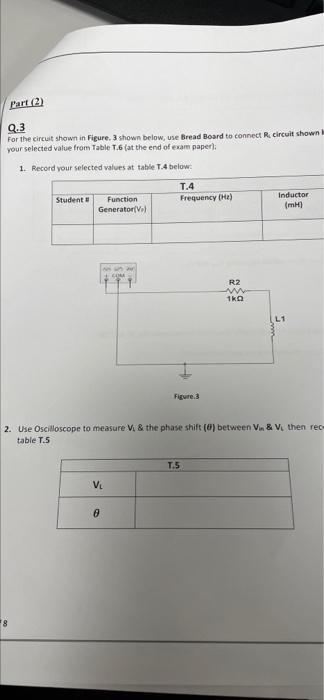

Part 2 Q 3 For The Circuit Shown In Figure 3 Shown Below Use Bread Board To Connect R Circuit Shown Your Selected Va 1 (20.42 KiB) Viewed 15 times

Part (2) Q.3 For the circuit shown in Figure 3 shown below, use Bread Board to connect R. Circuit shown your selected value from Table T.6 (at the end of exam paper); 1. Record your selected values at table 1.4 below: T.4 Frequency (H) Students Function Generator Inductor ml R2 M 1ka Figure 3 2. Use Oscilloscope to measure V. & the phase shift (0) between V. & V. then rec- table T.5 T.5 VL @ 18
