A) Determine whether each of the following open-loop systems are stable or not (has all roots in the open left half plan

[answerhappygod]

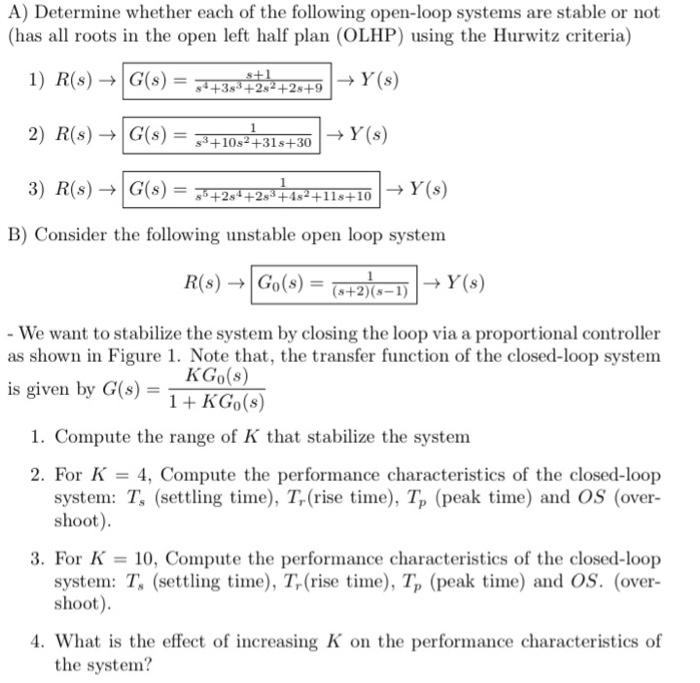

A Determine Whether Each Of The Following Open Loop Systems Are Stable Or Not Has All Roots In The Open Left Half Plan 1 (62.64 KiB) Viewed 18 times
