For the J-K flip-flop based circuit shown below (10 pts) Q1 Q2 Q3 J1 Q1 ܕܐ Q2 J3 Q3 CLK d) 13 K3 a Kā FF1 K₂ FF2 FF: Vec
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
For the J-K flip-flop based circuit shown below (10 pts) Q1 Q2 Q3 J1 Q1 ܕܐ Q2 J3 Q3 CLK d) 13 K3 a Kā FF1 K₂ FF2 FF: Vec

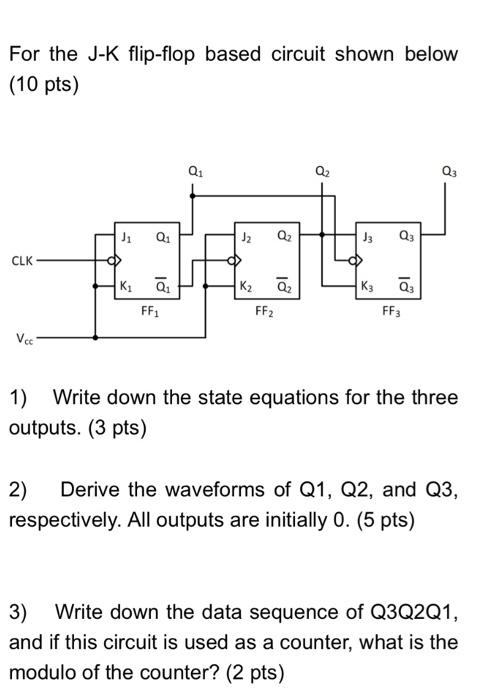

For the J-K flip-flop based circuit shown below (10 pts) Q1 Q2 Q3 J1 Q1 ܕܐ Q2 J3 Q3 CLK d) 13 K3 a Kā FF1 K₂ FF2 FF: Vec 1) Write down the state equations for the three outputs. (3 pts) 2) Derive the waveforms of Q1, Q2, and Q3, respectively. All outputs are initially 0. (5 pts) 3) Write down the data sequence of Q3Q2Q1, and if this circuit is used as a counter, what is the modulo of the counter? (2 pts)
