b) For an AM DSBFC transmitter produces output signal as followed: Vam(t) = 10.0 sin(215000t)+ 4.5 cos(4000t) - 4.5 cos(
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
b) For an AM DSBFC transmitter produces output signal as followed: Vam(t) = 10.0 sin(215000t)+ 4.5 cos(4000t) - 4.5 cos(

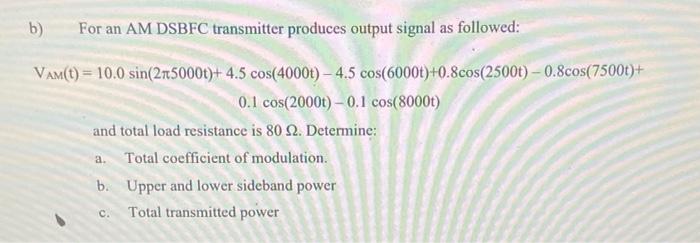

b) For an AM DSBFC transmitter produces output signal as followed: Vam(t) = 10.0 sin(215000t)+ 4.5 cos(4000t) - 4.5 cos(6000t)+0.8cos(2500t) - 0.8cos(7500+)+ 0.1 cos(2000t) – 0.1 cos(8000t) and total load resistance is 80 22. Determine: Total coefficient of modulation. bUpper and lower sideband power Total transmitted power a. c.
