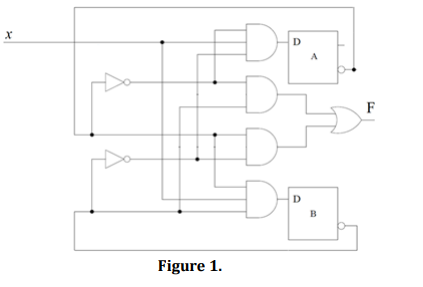

X DE A F D B Figure 1.

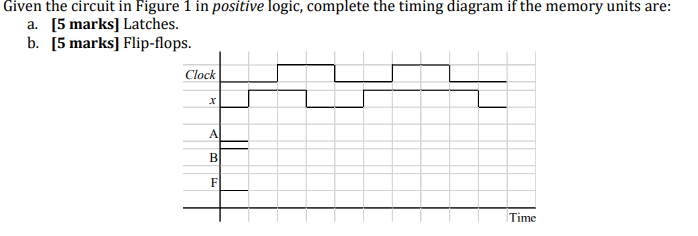

Given the circuit in Figure 1 in positive logic, complete the timing diagram if the memory units are: a. [5 marks] Latches. b. [5 marks] Flip-flops. Clock x A B B F Time
