Design a binary coded decimal to 7-segment display decoder. This decoder should have 4 inputs e.g., A, B, C, and D since

Post by answerhappygod »

Design A Binary Coded Decimal To 7 Segment Display Decoder This Decoder Should Have 4 Inputs E G A B C And D Since 1
Design A Binary Coded Decimal To 7 Segment Display Decoder This Decoder Should Have 4 Inputs E G A B C And D Since 1 (66.37 KiB) Viewed 36 times

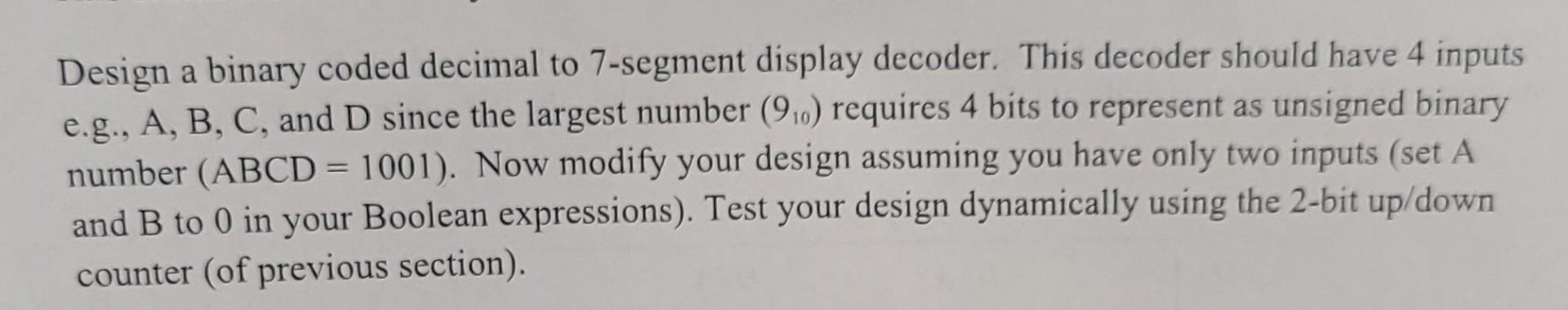

Design a binary coded decimal to 7-segment display decoder. This decoder should have 4 inputs e.g., A, B, C, and D since the largest number (910) requires 4 bits to represent as unsigned binary number (ABCD = 1001). Now modify your design assuming you have only two inputs (set A and B to 0 in your Boolean expressions). Test your design dynamically using the 2-bit up/down counter (of previous section).
