X D D A Figure 1. Question 5: [10 marks, moderate and tricky] Given the circuit in Figure 1 in positive logic, complete

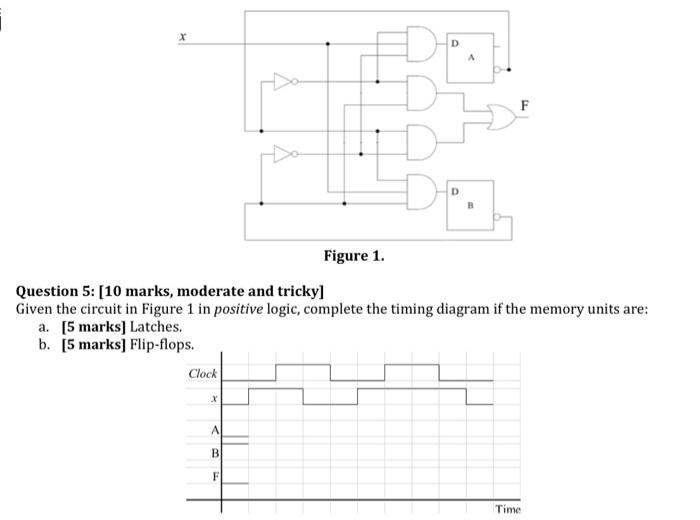

X D D A Figure 1. Question 5: [10 marks, moderate and tricky] Given the circuit in Figure 1 in positive logic, complete the timing diagram if the memory units are: a. [5 marks] Latches. b. [5 marks) Flip-flops. Clock x A B F Time
