Design the sequential circuit specified by the state diagram of Fig. A. using: A. D flip-flops. B. T flip-flops. C. JK f

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Design the sequential circuit specified by the state diagram of Fig. A. using: A. D flip-flops. B. T flip-flops. C. JK f

Post by answerhappygod »

Design The Sequential Circuit Specified By The State Diagram Of Fig A Using A D Flip Flops B T Flip Flops C Jk F 1
Design The Sequential Circuit Specified By The State Diagram Of Fig A Using A D Flip Flops B T Flip Flops C Jk F 1 (71.3 KiB) Viewed 75 times

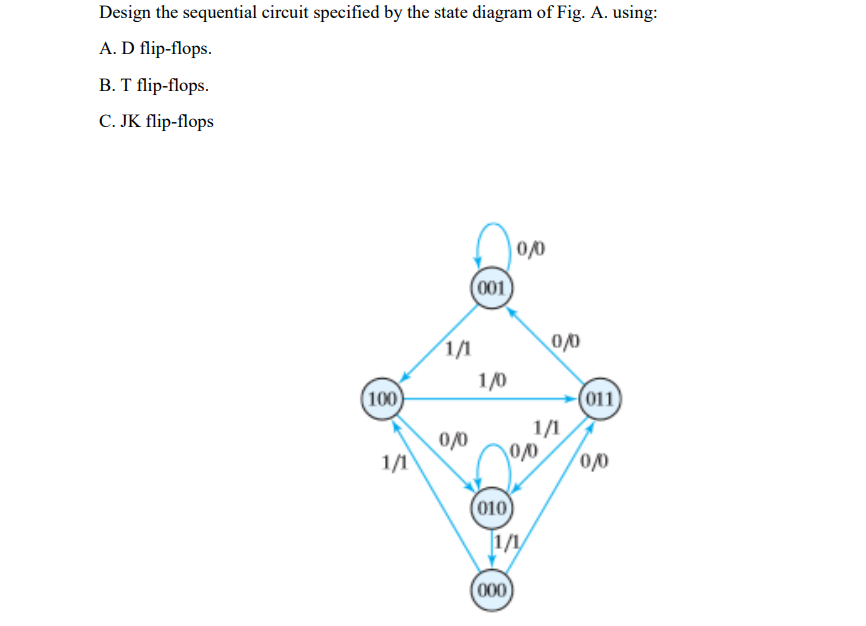

Design the sequential circuit specified by the state diagram of Fig. A. using: A. D flip-flops. B. T flip-flops. C. JK flip-flops 070 (001 1/1 070 1/0 (100 011 0/0 1/1 070 1/1 00 (010 1/1 000
