b) For the welded connection below, fillet weld of different lengths are provided at the heel and the toe of the angle.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

b) For the welded connection below, fillet weld of different lengths are provided at the heel and the toe of the angle.

Post by answerhappygod »

B For The Welded Connection Below Fillet Weld Of Different Lengths Are Provided At The Heel And The Toe Of The Angle 1
B For The Welded Connection Below Fillet Weld Of Different Lengths Are Provided At The Heel And The Toe Of The Angle 1 (61.51 KiB) Viewed 28 times

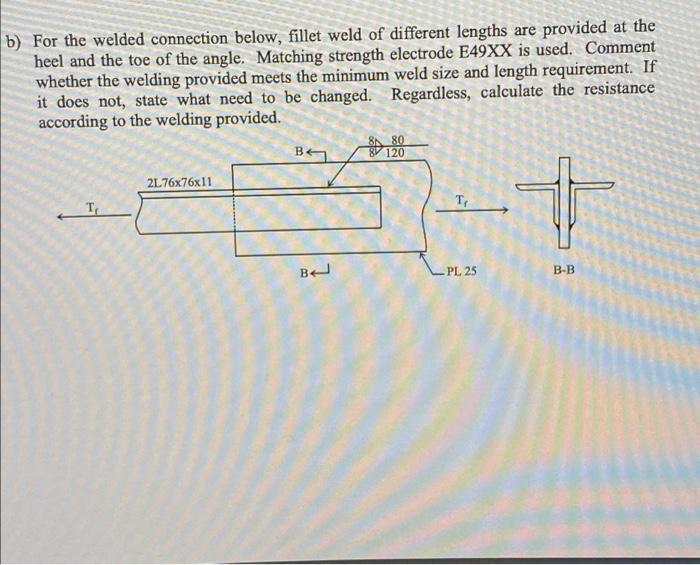

b) For the welded connection below, fillet weld of different lengths are provided at the heel and the toe of the angle. Matching strength electrode E49XX is used. Comment whether the welding provided meets the minimum weld size and length requirement. If it does not, state what need to be changed. Regardless, calculate the resistance according to the welding provided. B4 120 2L76x76x11 те + BA PL 25 B-B
