Problem 5: A cantilever concrete retaining wall is to be built with the dimensions shown in the Figure below. (a) Calcul

Post by answerhappygod »

Problem 5 A Cantilever Concrete Retaining Wall Is To Be Built With The Dimensions Shown In The Figure Below A Calcul 1
Problem 5 A Cantilever Concrete Retaining Wall Is To Be Built With The Dimensions Shown In The Figure Below A Calcul 1 (52.76 KiB) Viewed 21 times

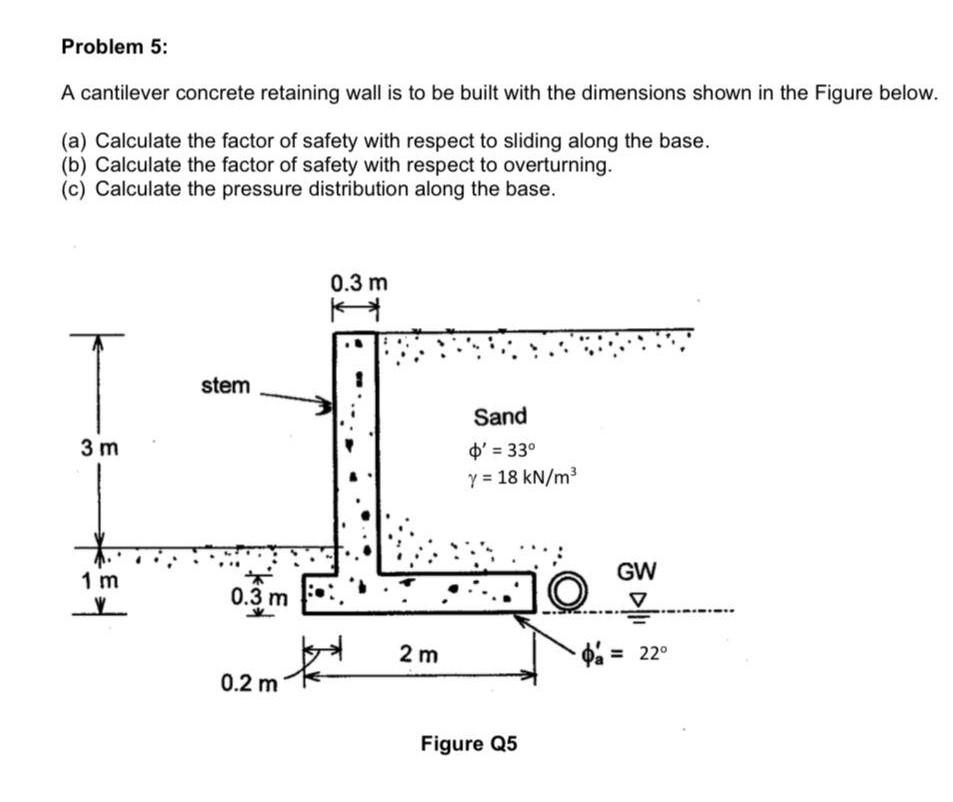

Problem 5: A cantilever concrete retaining wall is to be built with the dimensions shown in the Figure below. (a) Calculate the factor of safety with respect to sliding along the base. (b) Calculate the factor of safety with respect to overturning. (c) Calculate the pressure distribution along the base. 0.3 m stem 3 m Sand d' = 33° y = 18 kN/m² 1 m GW 0.3 m 2 m $a = 22° 0.2 m Figure Q5
