A three-hinged parabolic arch in Figure Q4 is hinged at point C and pinned at points A and B. Determine the shear force

Post by answerhappygod »

A Three Hinged Parabolic Arch In Figure Q4 Is Hinged At Point C And Pinned At Points A And B Determine The Shear Force 1
A Three Hinged Parabolic Arch In Figure Q4 Is Hinged At Point C And Pinned At Points A And B Determine The Shear Force 1 (26.26 KiB) Viewed 20 times

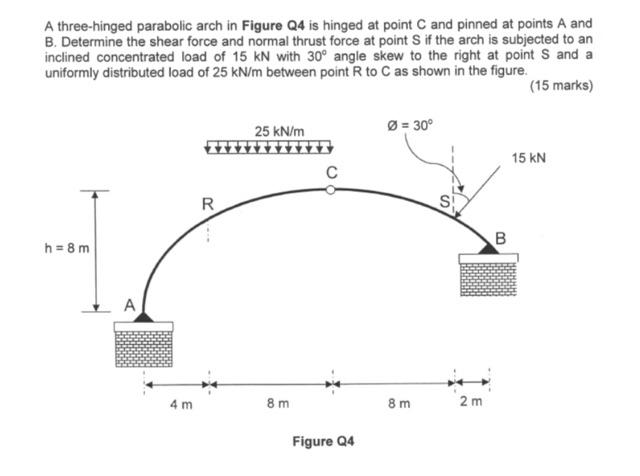

A three-hinged parabolic arch in Figure Q4 is hinged at point C and pinned at points A and B. Determine the shear force and normal thrust force at point S if the arch is subjected to an inclined concentrated load of 15 kN with 30° angle skew to the right at point S and a uniformly distributed load of 25 kN/m between point R to C as shown in the figure. (15 marks) 25 kN/m 0 = 30° 15 KN 20 S: B h = 8 m LA 4 m 8 m 8 m 2 m Figure Q4
