a) Figure Q3(a) shows a symmetrical three-hinged parabolic arch that is pinned at supports A and B, and has a hinge at p

Post by answerhappygod »

A Figure Q3 A Shows A Symmetrical Three Hinged Parabolic Arch That Is Pinned At Supports A And B And Has A Hinge At P 1
A Figure Q3 A Shows A Symmetrical Three Hinged Parabolic Arch That Is Pinned At Supports A And B And Has A Hinge At P 1 (31.13 KiB) Viewed 16 times

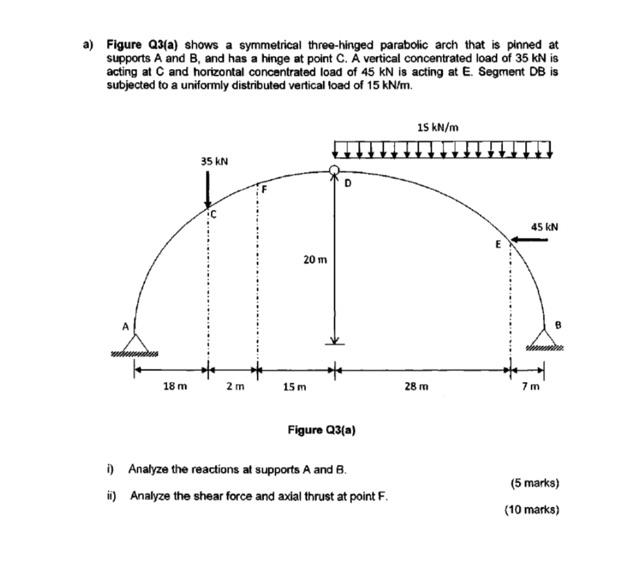

a) Figure Q3(a) shows a symmetrical three-hinged parabolic arch that is pinned at supports A and B, and has a hinge at point C. A vertical concentrated load of 35 kN is acting at C and horizontal concentrated load of 45 kN is acting at E. Segment DB is subjected to a uniformly distributed vertical load of 15 kN/m. 15 kN/m 35 KN 45 KN 20 m 18 m 2 m 15m 28 m 7 m Figure Q3(a) Analyze the reactions at supports A and B. i) Analyze the shear force and axial thrust at point F. (5 marks) (10 marks)
