The 5-story building design project will have its beams and slab poured monolithically and formed a T- section as shown.

Post by answerhappygod »

The 5 Story Building Design Project Will Have Its Beams And Slab Poured Monolithically And Formed A T Section As Shown 1
The 5 Story Building Design Project Will Have Its Beams And Slab Poured Monolithically And Formed A T Section As Shown 1 (655.79 KiB) Viewed 28 times

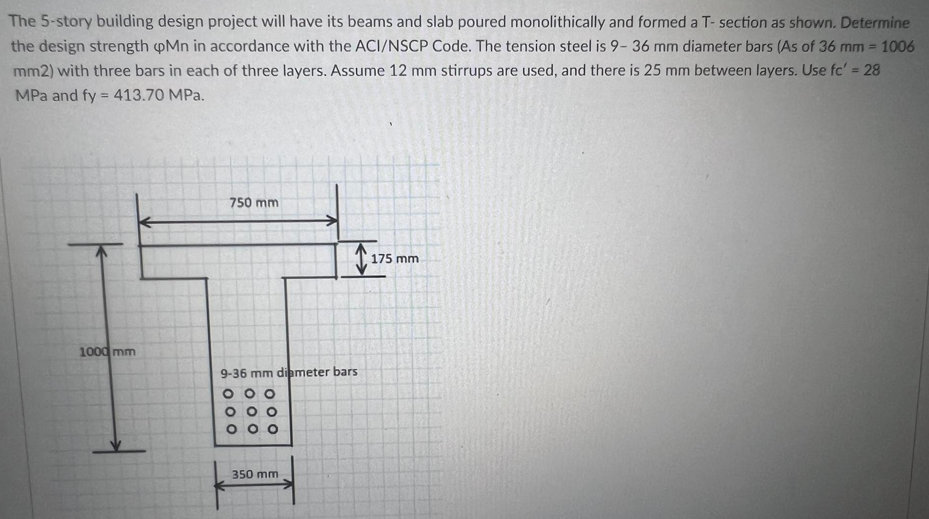

The 5-story building design project will have its beams and slab poured monolithically and formed a T- section as shown. Determine the design strength oMn in accordance with the ACI/NSCP Code. The tension steel is 9-36 mm diameter bars (As of 36 mm = 1006 mm2) with three bars in each of three layers. Assume 12 mm stirrups are used, and there is 25 mm between layers. Use fc' = 28 MPa and fy = 413.70 MPa. 750 mm 175 mm 1000 mm 9-36 mm dipmeter bars оооо OOO OOO 350 mm
