Design the combined footing to support the two columns shown. The base of footing is 2 m below the ground surface. Use t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Design the combined footing to support the two columns shown. The base of footing is 2 m below the ground surface. Use t

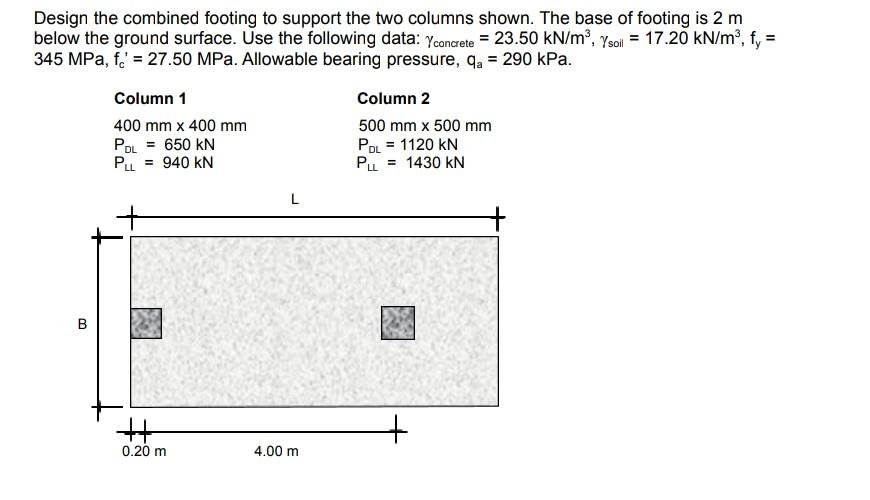

Design the combined footing to support the two columns shown. The base of footing is 2 m below the ground surface. Use the following data: Yconcrete = 23.50 kN/mº, Ysoit = 17.20 kN/m", fy = 345 MPa, fe' = 27.50 MPa. Allowable bearing pressure, 9a = 290 kPa. Column 1 400 mm x 400 mm POL = 650 KN PL 940 KN Column 2 500 mm x 500 mm POL = 1120 KN PL 1430 KN - DL = = L B ++ + 0.20 m 4.00 m
