For the design of the 5-Story building, select the reinforcing needed for the short square tied column shown for the fol

[answerhappygod]

For The Design Of The 5 Story Building Select The Reinforcing Needed For The Short Square Tied Column Shown For The Fol 1 (19.72 KiB) Viewed 29 times

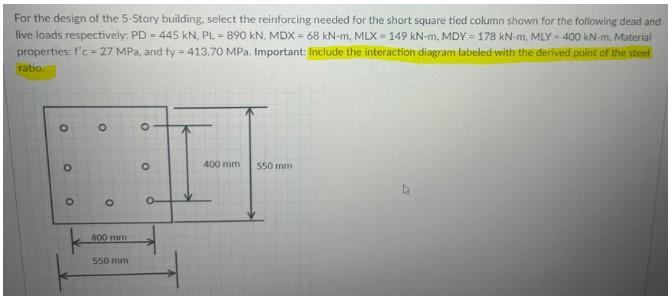

For the design of the 5-Story building, select the reinforcing needed for the short square tied column shown for the following dead and live loads respectively: PD = 445 kN, PL = 890 KN, MDX = 68 kN-m. MLX = 149 kN-m. MDY = 178 KN-m. MLY 400 KN I. Material properties: c=27 MPa and fy = 413.70 MPa. Important: Include the interaction diagram labeled with the derived point of the steel ratio. O O o O o o O 400 mm 550 mm о o o o 400 m 550 mm
