Question 2 Draw the working orthographic drawing of the following bush. Two views are given for referencing purposes. No

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 2 Draw the working orthographic drawing of the following bush. Two views are given for referencing purposes. No

Post by answerhappygod »

Question 2 Draw The Working Orthographic Drawing Of The Following Bush Two Views Are Given For Referencing Purposes No 1
Question 2 Draw The Working Orthographic Drawing Of The Following Bush Two Views Are Given For Referencing Purposes No 1 (52.28 KiB) Viewed 32 times

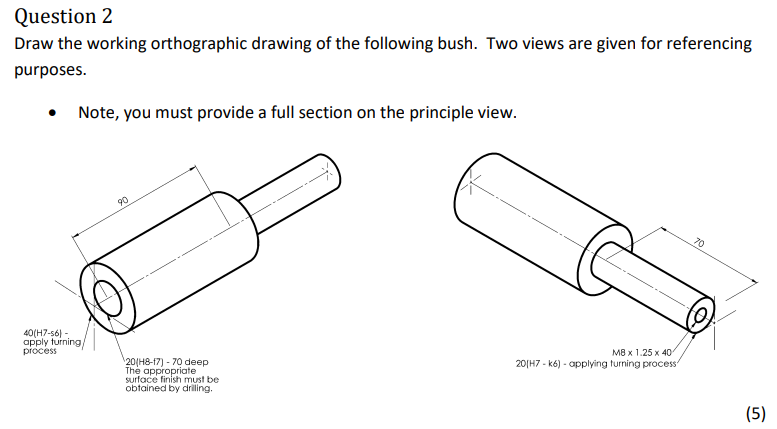

Question 2 Draw the working orthographic drawing of the following bush. Two views are given for referencing purposes. Note, you must provide a full section on the principle view. 90 70 40(H7-56) apply turning process MB x 1.25 x 40 2017 - k6) - applying turning process 20/H8-f7) - 70 deep The appropriate surface finish must be obtained by drilling. (5)
