The 5-story building design project will have its beams and slab poured monolithically and formed a T- section as shown.

Post by answerhappygod »

The 5 Story Building Design Project Will Have Its Beams And Slab Poured Monolithically And Formed A T Section As Shown 1
The 5 Story Building Design Project Will Have Its Beams And Slab Poured Monolithically And Formed A T Section As Shown 1 (238.25 KiB) Viewed 35 times

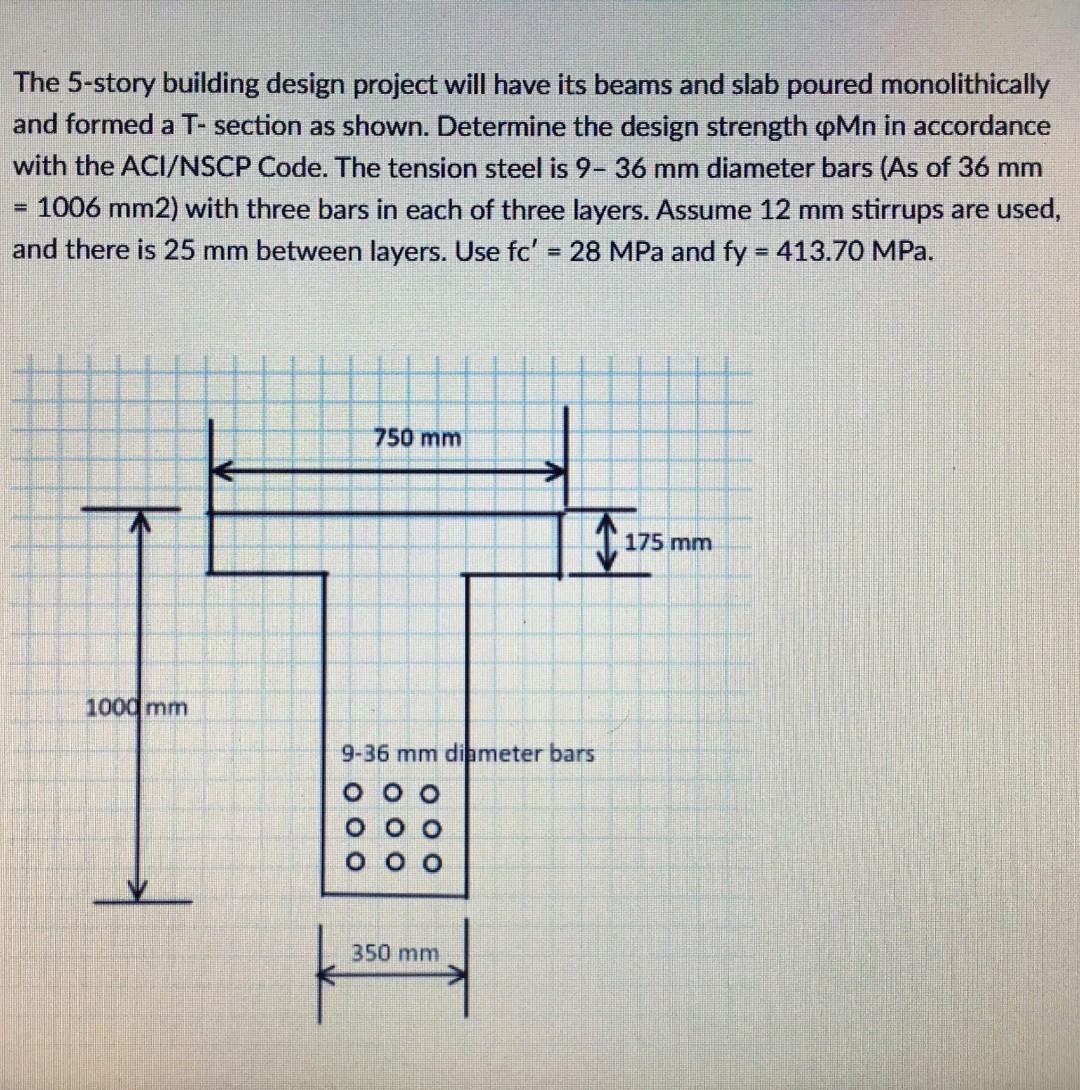

The 5-story building design project will have its beams and slab poured monolithically and formed a T- section as shown. Determine the design strength QMn in accordance with the ACI/NSCP Code. The tension steel is 9- 36 mm diameter bars (As of 36 mm 1006 mm2) with three bars in each of three layers. Assume 12 mm stirrups are used, and there is 25 mm between layers. Use fc' 28 MPa and fy = 413.70 MPa. = - 750 mm 1 175 mm 1000 mm 9-36 mm dipmeter bars O 350 mm
