For the design of the 5-Story building, select the reinforcing needed for the short square tied column shown for the fol

[answerhappygod]

For The Design Of The 5 Story Building Select The Reinforcing Needed For The Short Square Tied Column Shown For The Fol 1 (397.11 KiB) Viewed 40 times

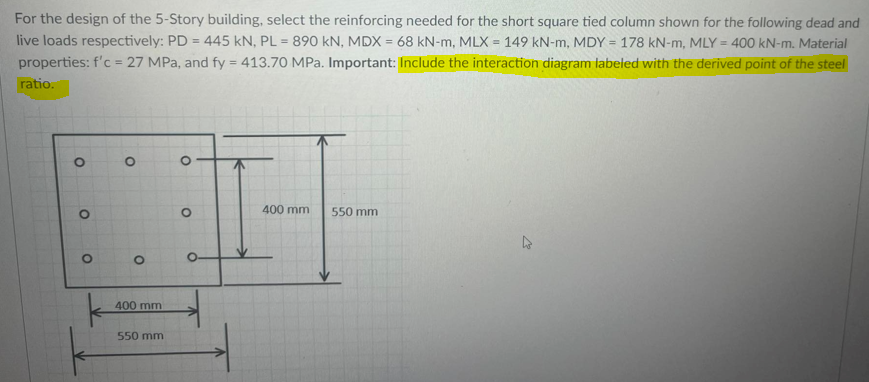

For the design of the 5-Story building, select the reinforcing needed for the short square tied column shown for the following dead and live loads respectively: PD = 445 KN, PL = 890 kN, MDX = 68 kN-m, MLX = 149 kN-m, MDY = 178 kN-m, MLY = 400 kN-m. Material properties: f'c = 27 MPa, and fy = 413.70 MPa. Important: Include the interaction diagram labeled with the derived point of the steel ratio. O O o O 400 mm 550 mm o O O k 400 mm 550 mm
