400 Check the adequacy of Grade 250 steel beam shown to carry (i) maximum bending moment at mid-span and (ii) maximum sh

Post by answerhappygod »

400 Check The Adequacy Of Grade 250 Steel Beam Shown To Carry I Maximum Bending Moment At Mid Span And Ii Maximum Sh 1
400 Check The Adequacy Of Grade 250 Steel Beam Shown To Carry I Maximum Bending Moment At Mid Span And Ii Maximum Sh 1 (182.05 KiB) Viewed 40 times

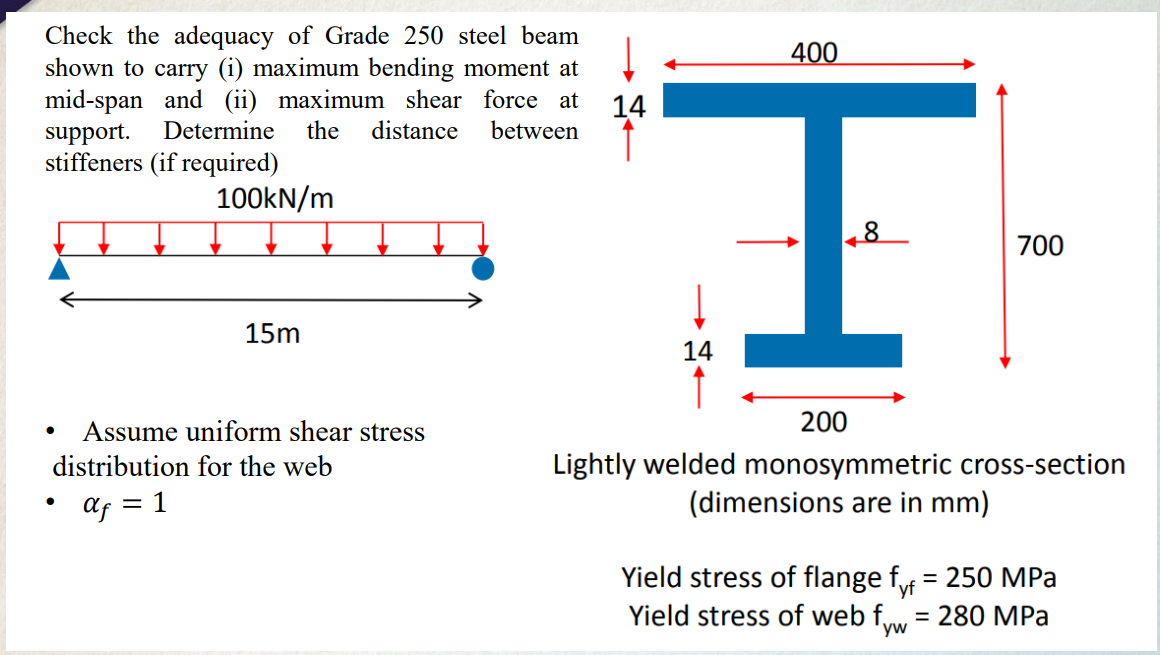

400 Check the adequacy of Grade 250 steel beam shown to carry (i) maximum bending moment at mid-span and (ii) maximum shear force at support. Determine the distance between stiffeners (if required) 100kN/m 14 H 18 700 15m 14 Assume uniform shear stress distribution for the web 200 Lightly welded monosymmetric cross-section (dimensions are in mm) . = Af = 1 = Yield stress of flange fyr = 250 MPa Yield stress of web fyw = 280 MPa =
