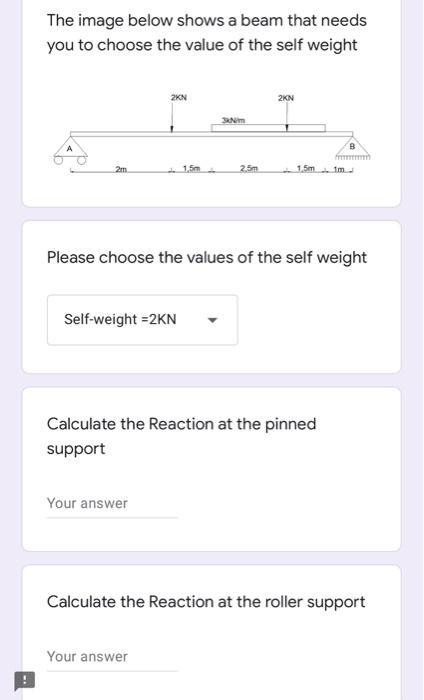

The image below shows a beam that needs you to choose the value of the self weight 2KN 2KN B 2m 1,5m 2.5m 1.5mm Please choose the values of the self weight Self-weight=2KN Calculate the Reaction at the pinned support Your answer Calculate the Reaction at the roller support Your answer

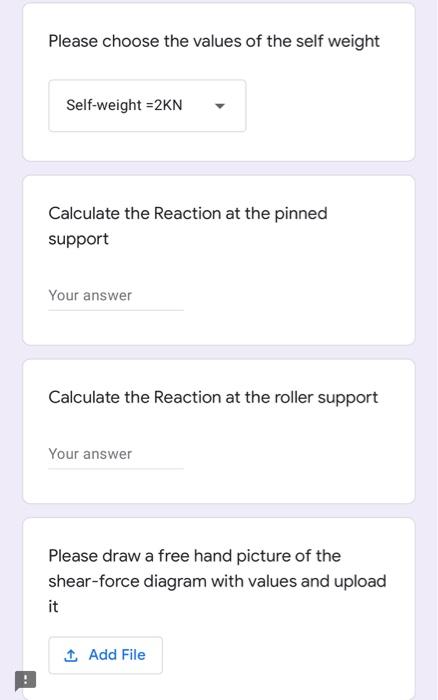

Please choose the values of the self weight Self-weight =2KN Calculate the Reaction at the pinned support Your answer Calculate the Reaction at the roller support Your answer Please draw a free hand picture of the shear-force diagram with values and upload it 1 Add File
