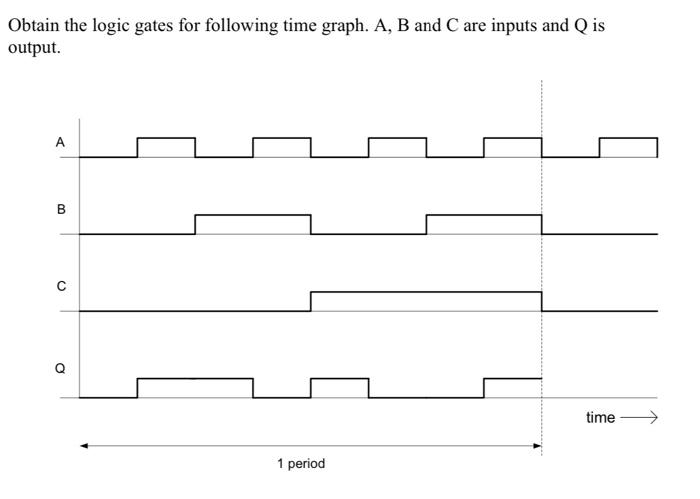

Obtain the logic gates for following time graph. A, B and C are inputs and Q is output. А B C Q time 1 period
