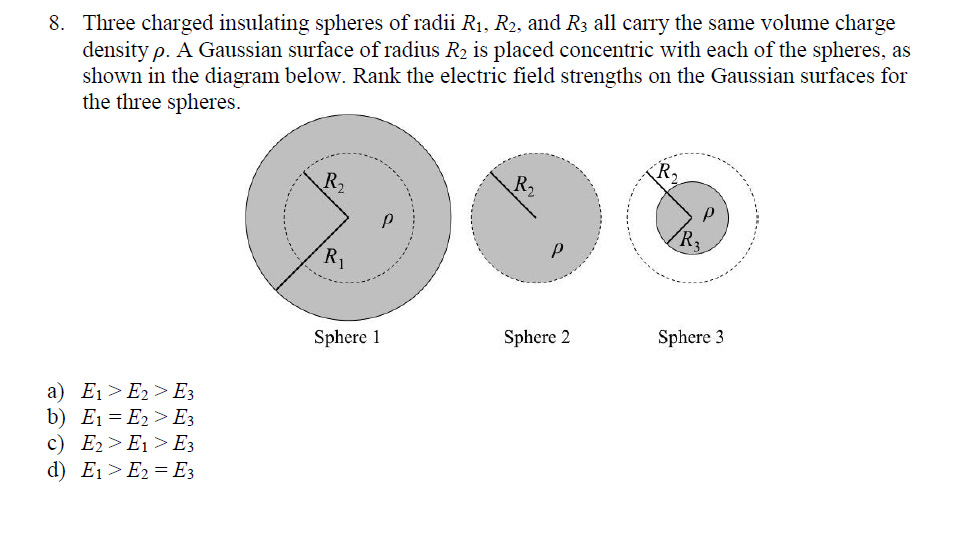

8. Three charged insulating spheres of radii R1, R2, and R3 all carry the same volume charge density p. A Gaussian surface of radius R2 is placed concentric with each of the spheres, as shown in the diagram below. Rank the electric field strengths on the Gaussian surfaces for the three spheres. Sphere 1 Sphere 2 Sphere 3 a) E1 > E2 > E3 b) E1 = E2 > E3 c) E2 > Ei > E3 d) Ei > E2 = E3
