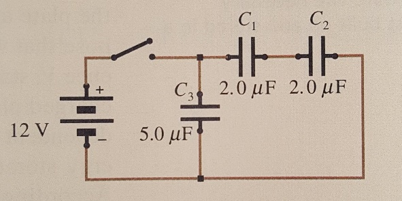

3. The circuit shown in the fig consists of a 12-V batteryand three capacitors. Determine both voltage across and charge oneach capacitor after the switch is closed electrostatic equilibriumis established. What is the equivalent capacitance?
3 The Circuit Shown In The Fig Consists Of A 12 V Battery And Three Capacitors Determine Both Voltage Across And Charg 1
3 The Circuit Shown In The Fig Consists Of A 12 V Battery And Three Capacitors Determine Both Voltage Across And Charg 1 (114.4 KiB) Viewed 38 times
Please show work
C C E C3 2.0 uF 2.0 uF 12 5.0 uF
