Two different capacitors have the same plate separation. However, one capacitor is made with square plates, while the ot

[answerhappygod]

Two Different Capacitors Have The Same Plate Separation However One Capacitor Is Made With Square Plates While The Ot 1 (124.25 KiB) Viewed 38 times

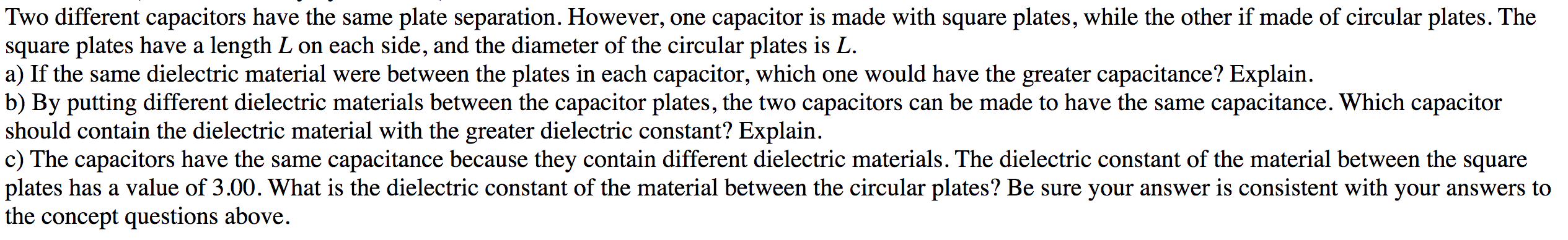

Two different capacitors have the same plate separation. However, one capacitor is made with square plates, while the other if made of circular plates. The square plates have a length L on each side, and the diameter of the circular plates is L. a) If the same dielectric material were between the plates in each capacitor, which one would have the greater capacitance? Explain. b) By putting different dielectric materials between the capacitor plates, the two capacitors can be made to have the same capacitance. Which capacitor should contain the dielectric material with the greater dielectric constant? Explain. c) The capacitors have the same capacitance because they contain different dielectric materials. The dielectric constant of the material between the square plates has a value of 3.00. What is the dielectric constant of the material between the circular plates? Be sure your answer is consistent with your answers to the concept questions above.
