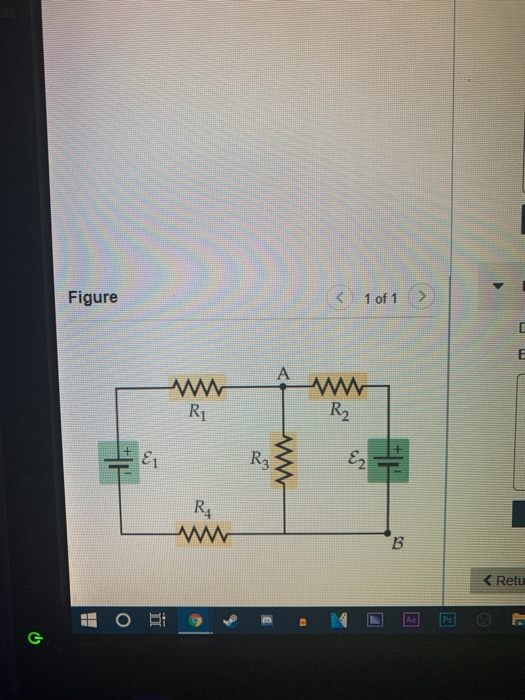

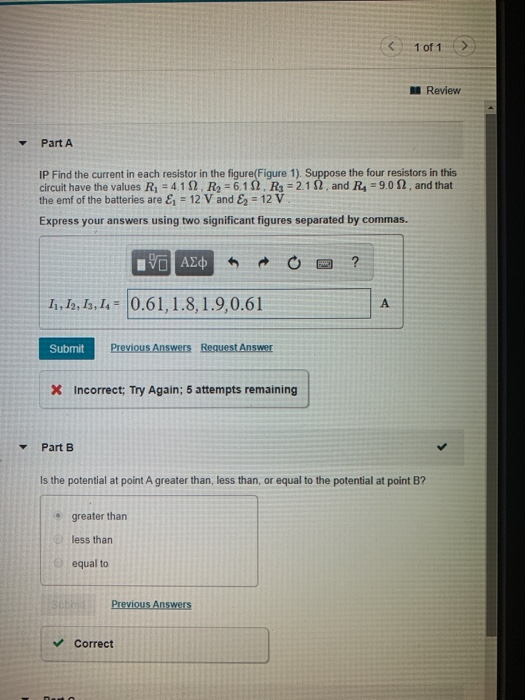

< 1 of 1 > Review Part A IP Find the current in each resistor in the figure(Figure 1). Suppose the four resistors in this circuit have the values Ri - 4.1.2 R2 = 6.112. R3 = 2.122, and R4 = 9.0 12, and that the emf of the batteries are E = 12 V and E, = 12 V Express your answers using two significant figures separated by commas. VAP 11, 12, 13, 14 = 0.61, 1.8, 1.9,0.61 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Parte Is the potential at point A greater than, less than or equal to the potential at point B? greater than less than equal to Previous Answers Correct

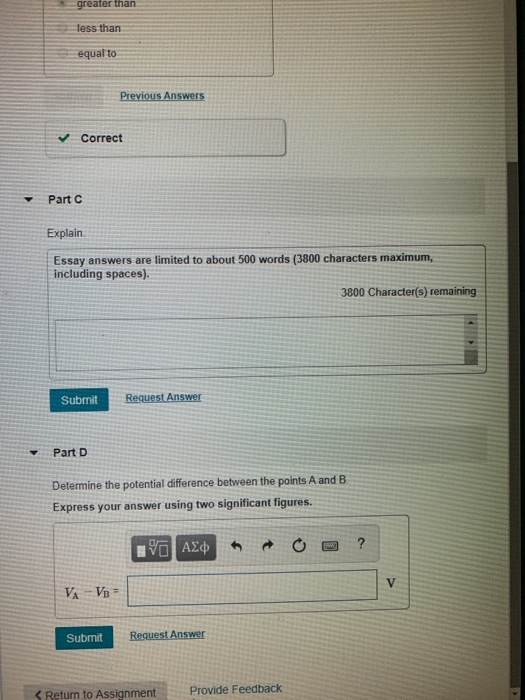

greater than less than equal to Previous Answers ✓ Correct Part Explain. Essay answers are limited to about 500 words (3800 characters maximum, including spaces). 3800 Character(s) remaining Subrnit Request Answer Part D Determine the potential difference between the points A and B. Express your answer using two significant figures. O AXO O ? VA - VB- Submit Request Answer Return to Assignment Provide Feedback
