2. The figure below shows the potential across two different capacitors each in an RC circuit. One capacitor is charging

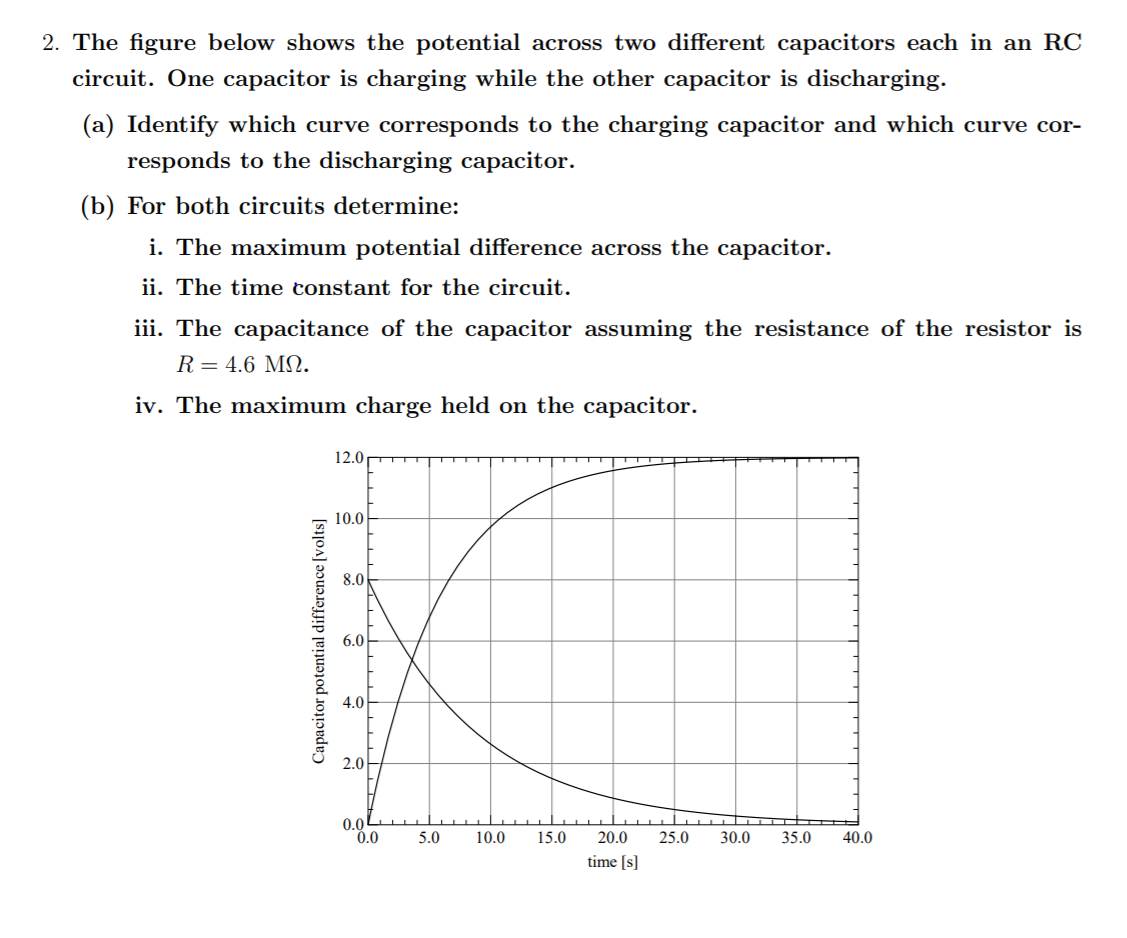

2. The figure below shows the potential across two different capacitors each in an RC circuit. One capacitor is charging while the other capacitor is discharging. (a) Identify which curve corresponds to the charging capacitor and which curve cor- responds to the discharging capacitor. (b) For both circuits determine: i. The maximum potential difference across the capacitor. ii. The time constant for the circuit. iii. The capacitance of the capacitor assuming the resistance of the resistor is R= 4.6 MS. iv. The maximum charge held on the capacitor. 12. 0T Capacitor potential difference (volts] 0.0 5.0 10.0 15.0 25.0 30.0 35.0 40.0 20.0 time [s]
