Three balls, with charges of +49, -29, and -9, are equally spaced along a line. The spacing between neighboring balls is

[answerhappygod]

Three Balls With Charges Of 49 29 And 9 Are Equally Spaced Along A Line The Spacing Between Neighboring Balls Is 1 (126.61 KiB) Viewed 41 times

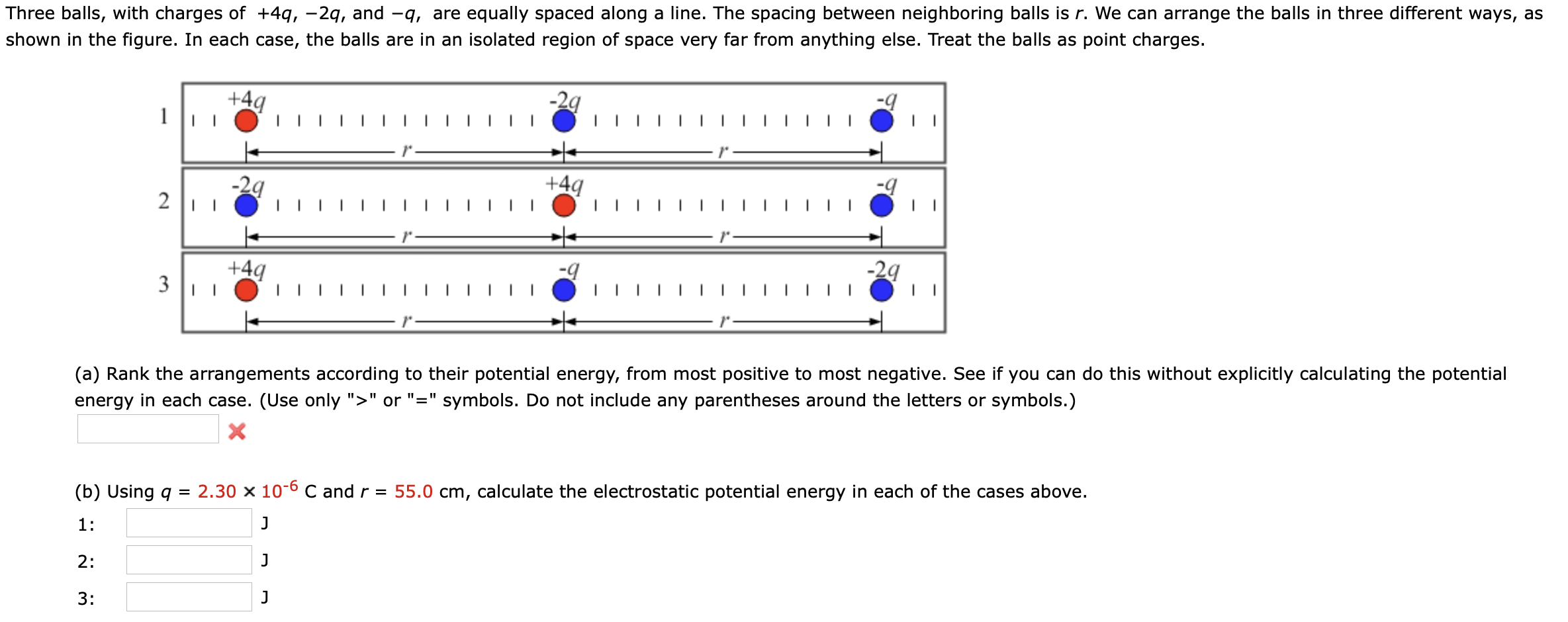

Three balls, with charges of +49, -29, and -9, are equally spaced along a line. The spacing between neighboring balls is r. We can arrange the balls in three different ways, as shown in the figure. In each case, the balls are in an isolated region of space very far from anything else. Treat the balls as point charges. +49 +49 - 3 | (a) Rank the arrangements according to their potential energy, from most positive to most negative. See if you can do this without explicitly calculating the potential energy in each case. (Use only ">" or "=" symbols. Do not include any parentheses around the letters or symbols.) (b) Using q = 2.30 x 10-6 C and r = 55.0 cm, calculate the electrostatic potential energy in each of the cases above.
