Problem 10: The beam of 2000 N is supporting a block of 225 Kg. When the beam is making an angle of 45°, and the cable a

Post by answerhappygod »

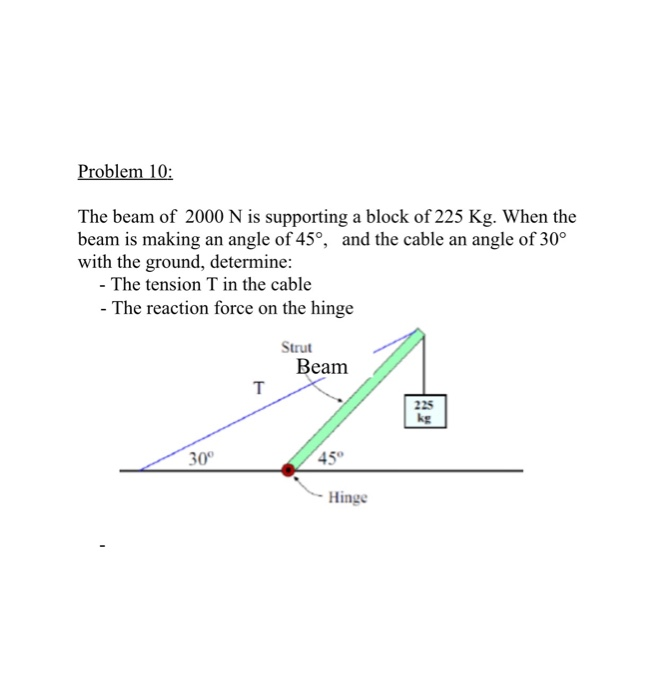

Problem 10 The Beam Of 2000 N Is Supporting A Block Of 225 Kg When The Beam Is Making An Angle Of 45 And The Cable A 1
Problem 10 The Beam Of 2000 N Is Supporting A Block Of 225 Kg When The Beam Is Making An Angle Of 45 And The Cable A 1 (77.69 KiB) Viewed 38 times
Problem 10: The beam of 2000 N is supporting a block of 225 Kg. When the beam is making an angle of 45°, and the cable an angle of 30° with the ground, determine: - The tension T in the cable - The reaction force on the hinge Strut Beam т 300 45° - Hinge
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
