Problem 8: In the picture below, the beam of 12 meters and 40 Kg is supported by a cable making an angle of 45 ° above t

Post by answerhappygod »

Problem 8 In The Picture Below The Beam Of 12 Meters And 40 Kg Is Supported By A Cable Making An Angle Of 45 Above T 1
Problem 8 In The Picture Below The Beam Of 12 Meters And 40 Kg Is Supported By A Cable Making An Angle Of 45 Above T 1 (57.07 KiB) Viewed 40 times

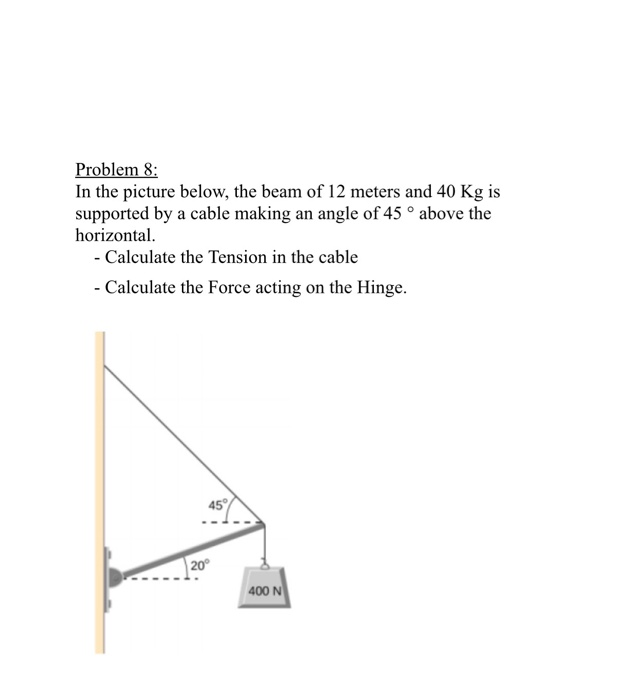

Problem 8: In the picture below, the beam of 12 meters and 40 Kg is supported by a cable making an angle of 45 ° above the horizontal. - Calculate the Tension in the cable - Calculate the Force acting on the Hinge. 400 N
