Problem 7: The beam AB of a length of 1.5 meter and a mass of 10 kg is supported by a horizontal cable (CD) as shown in

Post by answerhappygod »

Problem 7 The Beam Ab Of A Length Of 1 5 Meter And A Mass Of 10 Kg Is Supported By A Horizontal Cable Cd As Shown In 1
Problem 7 The Beam Ab Of A Length Of 1 5 Meter And A Mass Of 10 Kg Is Supported By A Horizontal Cable Cd As Shown In 1 (81.77 KiB) Viewed 42 times

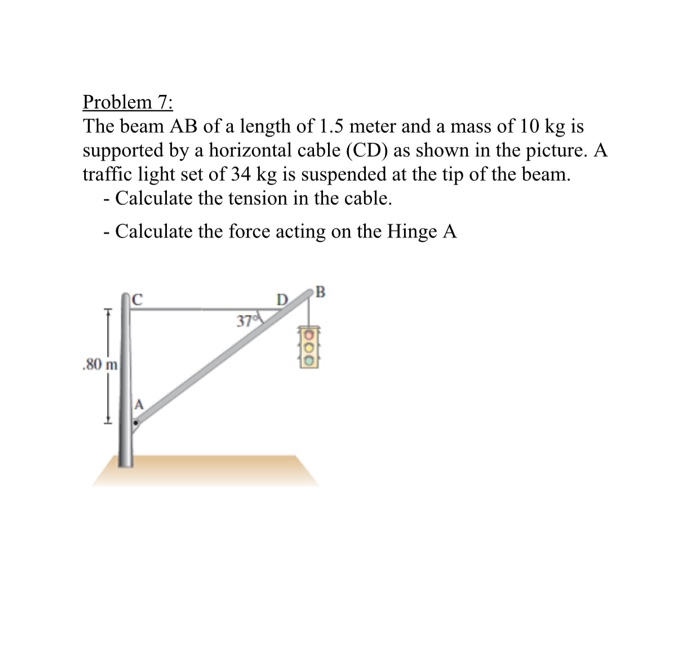

Problem 7: The beam AB of a length of 1.5 meter and a mass of 10 kg is supported by a horizontal cable (CD) as shown in the picture. A traffic light set of 34 kg is suspended at the tip of the beam. - Calculate the tension in the cable. - Calculate the force acting on the Hinge A DB 370 80
