Commit The Following Formulas To Memory And Know When They Are Appropriate To Use 1 Ohm S Law V Ir 2 Capacitor Law 1 (90.25 KiB) Viewed 39 times
Can I get an explanation of when to use the equations and whatthey each represent?

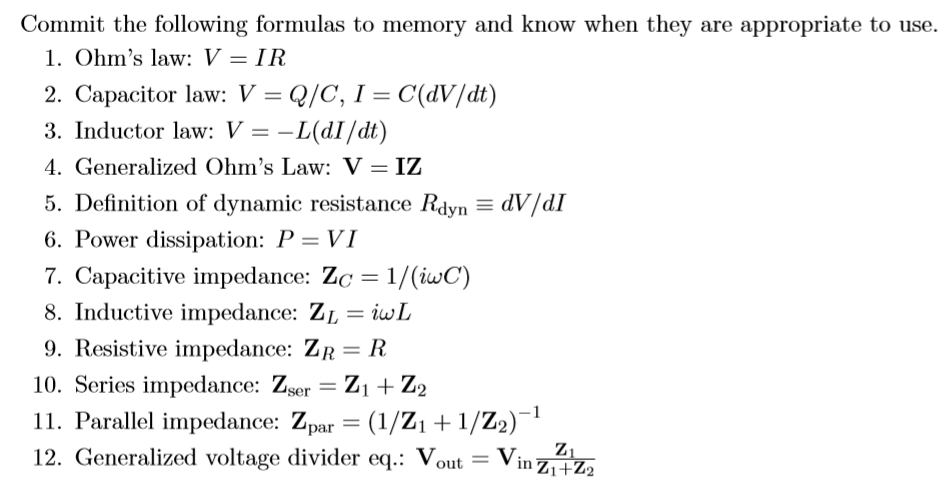

Commit the following formulas to memory and know when they are appropriate to use. 1. Ohm's law: V = IR 2. Capacitor law: V = Q/C, I = C(dV/dt) 3. Inductor law: V = -L(dI/dt) 4. Generalized Ohm's Law: V = IZ 5. Definition of dynamic resistance Rdyn = dV/DI 6. Power dissipation: P=VI 7. Capacitive impedance: Zc = 1/(iwC) 8. Inductive impedance: Zu = iwl 9. Resistive impedance: Zr=R 10. Series impedance: Zser = Z1 + Z2 11. Parallel impedance: Zpar = (1/Z1 +1/Z2)-1 12. Generalized voltage divider eq.: Vout = Vin 2,2%,
